Product Details:
|
| Branch: | Huawei Router | Model: | AR2204E |
|---|---|---|---|
| WAN Speed With Services(IMIX): | 400Mbps | Fixed Port: | 3 X GE (1 X Combo Port) |
| SIC Slots: | 4 | Condition: | New Original And 1 Year Warranty |
| High Light: | cisco network router,cisco modular router |
||

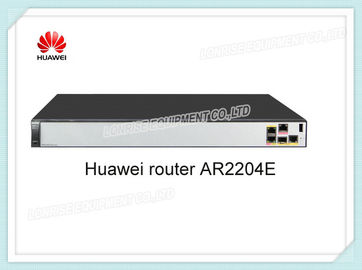

Huawei Router AR2204E 3GE WAN(1GE Combo),1 USB,4 SIC,60W AC POWER(1+1)
Scalable and secure, unified voice and data communications for medium-sized enterprise headquarters and branch offices. Gigabit per second routing and switching are integrated into a single device, reducing TCO.
Native WLAN support combined with non-blocking switching fabric architecture provides resilient multimedia communications with comprehensive security features — including built-in firewall and continually updated mechanisms to defend against malicious attacks.
The AR2200’s modular design lets you configure and upgrade ports as needed — from Digital Signal Processor (DSP) support to Smart Interface Cards (SICs) to customize speeds and interfaces.
| Specifications | AR2204-27GE/ AR2204-27GE-P |
AR2204-51GE-P | AR2204E |
| WAN Speed with Services | 400 Mbit/s | 400 Mbit/s | 400 Mbit/s |
| Fixed WAN Ports | 3 x GE (1 x Combo) | 3 x GE (1 x Combo) | 3 x GE (1 x Combo port) |
| Fixed LAN Ports | 24 x GE/24 x GE (8 x GE ports support PoE) | 48 x GE (8 x GE ports support PoE) | - |
| SIC Slots | 4 | 4 | 4 |
| WSIC Slots (default/max.) | 0 | 0 | 0/2 |
| XSIC Slots (default/max.) | 0 | 0 | 0 |
| Wireless Controller | Wireless Controller is integrated in software | ||
| Maintenance | All interface cards support hot-swapping U-disk deployment supported | All interface cards support hot-swapping U-disk deployment supported |
All interface cards support hot-swapping U-disk deployment supported |
| Memory | 512 MB | 512 MB | 512 MB |
| Flash (default/max.) |
512 MB | 512 MB | 512 MB |
| Hard Disk | - | - | - |
| Power Supply | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz DC: -48V to -60V |
| Redundant Power Supply | Internal: AC (only AR2204-27GE-P) | Internal: AC | Internal: AC, DC |
| Rack Height | 1 RU | 1 RU | 1 RU |
| Dimensions (W x D x H) |
442 mm x 420 mm x 44.5 mm | 442 mm x 420 mm x 44.5 mm | 442 mm x 420 mm x 44.5 mm |
