Product Details:
|
| Brand: | HUAWEI | PN: | AR1504-24T |
|---|---|---|---|
| Fixed Ports: | 4 X GE Combo, 24 X FE RJ45 | Memory / Flash: | 512 MB |
| Rate: | 10/100 Mbit/s | Condition: | New With 1Year Warranty |
| High Light: | cisco network router,cisco modular router |
||

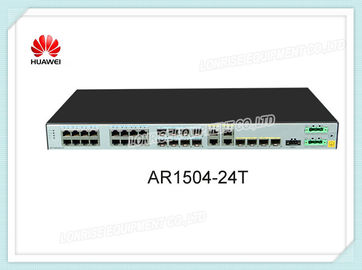

Huawei Router AR1504-24T 4 x GE Combo, 24 x FE RJ45,IoT VoIP Gateway Router
They are the next-generation routing and gateway devices, which provide the routing, switching, wireless, voice, and security functions.
the ARs are located between an enterprise network and a public network, functioning as the only ingress and egress for data transmitted between the two networks.
The deployment of various network services over the ARs reduces operation& maintenance (O&M) costs as well as those associated with establishing an enterprise network. You can select ARs of different specifications as egress gateways based on the user quantity of an enterprise.
| 1 | 24 FE electrical interfaces | 2 | 4GE combo interfaces |
| 3 | Reserved DO interface | 4 |
Two power sockets NOTE:
Use a AC/DC power cables to connect the router to an external power source. |
| 5 | Ground point
NOTE:
To protect the router from lightning and interference, reliably ground the router using a Ground Cable. |
6 | Reset button
NOTE:
|
| 7 | USB interface | 8 |
ETH interface NOTE:
An ETH interface is a management interface used to upgrade the router.
|
| 9 | Console interface | 10 |
-
|
|
Item |
Specification |
|---|---|
| System parameters | |
| Processor | Dual-core, 700 MHz |
| Memory | 512 MB |
| Flash | 512 MB |
| Dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Weight (empty chassis) | 3.7 kg (8.16 lb) |
| Power consumption (empty chassis) | |
| Typical power consumption | 10.22 W |
| Maximum power consumption | 13.38 W |
| Power specifications | |
| AC power input |
|
| DC power input |
|
| Interface density | |
| Console interfaces | 1 |
| USB 2.0 interfaces | 1 |
| DO interfaces | 1 |
| ETH interfaces | 1 |
| Service interfaces |
|
