Product Details:
|
| Part Number: | AR169F | Brand: | Huawei |
|---|---|---|---|
| Interface Number: | LAN Interfaces: GE0-GE3 | Extended Slots: | Not Support |
| Power Module Type: | External Power Adapter | Condition: | New With 1Year Warranty |
| High Light: | cisco network router,cisco modular router |
||

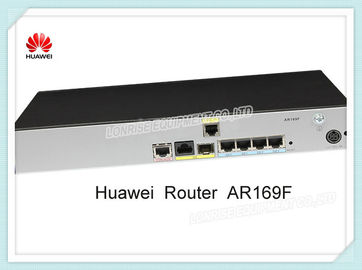

Huawei Router AR169F,VDSL over POTS with bonding WAN,1GE COMBO WAN,4GE LAN,1 USB
Huawei AR G3 AR160 Series AR169F fixed interface access enterprise router bring good user experience and secure environment, fanless design provide quiet environment.
|
Item |
Specification |
|---|---|
| System parameters | |
| Processor | Dual-core, 533 MHz |
| Memory |
|
| Flash | 512 MB |
| Micro SD card (default: sd1) | None |
| Hard disk | Not supported |
| Physical specifications | |
| Dimensions (H x W x D) |
|
| Weight | 2.8 kg (6.17 lb) |
| Power specifications | |
| Rated input voltage range (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum output current | 2 A |
| Maximum output power | 24 W |
| RPS power supply | Not supported |
| PoE power supply | Not supported |
| Power consumption | |
| Maximum power consumption |
|
| Heat dissipation | |
| Fan module | None |
| Airflow (facing the front panel) | None |
| Interface density | |
| Management interfaces | 1 (RJ45) |
| CON/AUX interfaces | 1 (RJ45) |
| USB 2.0 interfaces | 1 |
| Service interfaces (standard configuration) |
WAN interfaces: one VDSL interface, and one GE combo interface LAN interfaces: four GE electrical interfaces, in which LAN interface GE0 can be configured as a WAN interface. |
| Extended slots | Not supported |
| Environment parameters | |
| Operating temperature |
0°C to 45°C (32°F to 113°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating relative humidity | 5% to 95%, noncondensing |
| Operating altitude | < 5000 m (16404.2 ft.) |
| Part number |
|
| 1 | USB interface (host) | 2 | CON/AUX interface |
| 3 | WAN interface: GE combo interface | 4 | LAN interfaces: four GE electrical interfaces |
| 5 | RST button | 6 | Power jack |
| 7 | Jack for power cable locking strap | 8 | WAN interface: VDSL interface |
| 9 | Product model silkscreen | 10 | Ground point |
