Product Details:
|
| Part Number: | AR0M012SBA00 | Brand: | Huawei |
|---|---|---|---|
| Ports: | 2 X GE WAN,8 X FE LAN | VPN: | Support |
| Power Module Type: | Pluggable Power Module | Condition: | New With 1Year Warranty |
| High Light: | cisco ethernet router,cisco modular router |
||

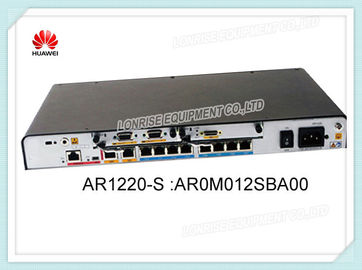

AR0M012SBA00 Huawei AR1220-S Series Router,2GE WAN,8FE LAN,2 USB,2 SIC
AR0M012SBA00 router for small enterprise or remote office environment without voice support (non-upgradable).
AR0M012SBA00 Specification |
|
| Memory | 512 MB |
| Flash | 256 MB |
| Fixed port: | 8xFE(can be configured as WAN interfaces), 2xGE |
| Extended slots | 2 SIC slots |
| Power module type | Pluggable power module |
| Weight | 2.9 kg (6.39 lb) |
| Dimensions (W x D x H) | 44.5mm x 390 mm x 220 mm |
Huawei AR0M012SBA00 features and Specifications:
* Enterprise router, Security, Wireless controller, Firewall
* 2 Gigabit Ethernet 10/100/1000 WAN,8 Fast Ethernet 10/100 LAN ports,2 USB,2 SIC slots
* 512MB Memory, 256MB flash drive, Multicore CPU
* Up to 200Mbps system bandwidth, 8Gbps switching capacity, 900Mbps firewall performance
* Up to 12 wireless Access point
* WiFi: 802.11 b/g/n
* Slot switching bandwidth: SIC & WSIC slots 2Gbps
* 3G: CDMA 2000 EV-DO Rev A, WCDMA, individual 3G uplink/backup link
* Frequency: 50/60 Hz
* Maximum power: 54 W
* PoE power: External 100 W
* Power supply(AC): 100V to 240V
* MPLS: LDP, MPLS L3 VPN, static LSP, dynamic LSP
* Multicast: IGMP V1/V2/V3, PIM SM, PIM DM, MSDP
* Operating temperature: 0°C to 40°C
* Relative humidity: 5% to90% (noncondensing)
* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call
* VPN: IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN
* WAN speed with services: 200Mbps
* IPv4 unicast routing: Routing policy, static route, RIP, OSPF, IS-IS, BGP
* IPv6 unicast routing: Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
* LAN: IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP
* Management and maintenance: Upgrade management, device management, GTL, SNMP(v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI
* WLAN(AC): AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management ( 802.11a/b/g/n ) ,WLAN QoS ( WMM), WLAN security ( WEP/WPA/WPA2/Key management)
* WLAN(AP): AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), WLAN user management(WLAN models only support WLAN AP features)
* Dimensions (height x width x depth): 44.5 mm x 390 mm x 220 mm
* Weight: 2.9KG
Order Information
NE20E-M2F S6720S-26Q-EI-24S-AC S6720-30L-HI-24S-DC
S5720-50X-EI-46S-DC CE6850-48T4Q-EI CE6851-48S6Q-HI
CE6850U-48S6Q-HI S5700S-52P-LI-AC S2700-26TP-PWR-EI
