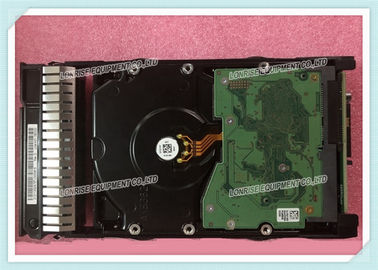

Product Details:
|
| Condition: | NIB And Used | Branch: | Huawei |
|---|---|---|---|
| Type: | HDD | PN: | 03211PVN |
| Product Family: | Server | Product Series: | E9000 V3 |
| High Light: | huawei ethernet switches,huawei industrial switches |
||
Quick Details
Application:
Server
Style:
HDD
Interface Type:
SAS
Brand Name:
For Huawei
Model Number:
FusionServer Pro 1288H V5, N3000NS127W3
Place of Origin:
Guangdong, China (Mainland)
FusionServer Pro 1288H V5:
1U, 2-socket
1288H V5 Dimensions (3.5-inch drives):
43 mm x 447 mm x 748 mm
1288H V5 Dimensions (2.5-inch drives):
43 mm x 447 mm x 708 mm
Memory slots:
24 DDR4 DIMM
Power Supply:
2 hot-swappable
LOM Network Ports:
2 x 10GE + 2 x GE ports
RAID Support:
RAID 0, 1, 10, 5, 50, 6, or 60
Flash storage:
2 M.2 SSDs
FusionServer Pro 1288H V5 Technical Specifications
The Huawei FusionServer Pro 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, High-Performance Computing (HPC), and Big Data processing. It delivers superior performance and excellent scalability while improving space utilization in data centers, driving down the overall expenditure.
|
Model
|
FusionServer Pro 1288H V5
|
|
Form Factor
|
1U, 2-socket rack server
|
|
Processors
|
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W |
|
Memory
|
24 DDR4 DIMM slots, 2933 MT/s; up to 12 DCPMMs, 2666 MT/s
|
|
Internal Storage
|
Supports hot-plug hard drives and the following configuration options:
10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs 8 x 2.5-inch SAS/SATA hard drives 4 x 3.5-inch SAS/SATA hard drives Flash storage: 2 M.2 SSDs |
|
RAID Support
|
RAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
|
Network Ports
|
LOM: 2 x 10GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports |
|
PCIe Expansion
|
Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
|
|
Fan Modules
|
7 hot-swappable fan modules with optional N+1 redundancy
|
|
Power Supply Units
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
|
Management
|
Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management. |
|
Operating Temperature
|
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
|
|
Certifications
|
CE, UL, FCC, CCC, and RoHS
|
|
Installation suite
|
L-shaped guide rails, adjustable guide rails, and holding rails
|
|
Dimensions (H x W x D)
|
Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
