Product Details:
|
| Part Number: | CE6810-48S-LI | Brand: | HUAWEI |
|---|---|---|---|
| Fixed Ports: | 48*10GE SFP+ | Forwarding Performance: | 720 Mpps |
| Switching Capacity: | 960 Gbit/s | Condition: | New With 1Year Warranty |
| High Light: | gigabit network switch,huawei ethernet switches |
||

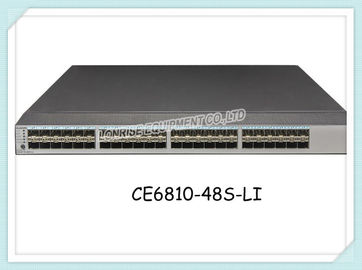

CE6810-48S-LI Switch 48-Port 10GE SFP+,Without Fan and Power Module.
CE6810-48S-LI Specification |
|
| 10G Base-T Ports | 0 |
| SFP+ Ports | 48 |
| QSFP+ Ports | 0 |
| Switching Capacity | 960 Gbit/s |
| Forwarding Rate | 720 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| TRILL (CE6810EI) | |
| VM Awareness | Agile Controller |
| Network Convergence | FCoE |
| DCBX, PFC, and ETS | |
| Programmability | OpenFlow |
| OPS | |
| Puppet and OVSDB plugins released on open source websites (CE6810EI) | |
| Linux container for open source and customization programming | |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | Ingress: 1,250 Egress: 500 |
| MAC Address Table | Maximum: 128k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 1.5k |
| IPv4 FIB (maximum) | 1.5k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (CE6810EI) | |
| IPv6 FIB (maximum) | / |
| Multicast FIB (maximum) | / |
| Multicast | IGMP snooping |
the recommended elements for the CE6810-48S-LI.
| Model | Description |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ Optical Transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| 40GE QSFP+ optical transceiver | |
|
|
40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
|
|
40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
| GE Copper Transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
Ordering information
|
Part Number |
Part Model |
Part Description |
|---|---|---|
| 02350AQC | CE6810-LI-B01 | CE6810-48S-LI Switch (2*600W AC Power Module, 2*FAN Box, Port-side Exhaust) |
| 02350EHB | CE6810-LI-B-B0B | CE6810-48S-LI Switch (2*600W AC Power Module, 2*FAN Box, Port-side Intake) |
| 02350EGY | CE6810-48S-LI-F | CE6810-48S-LI Switch (48-Port 10G SFP+, 2*FAN Box, Port-side Exhaust, Without Power Module) |
| 02350EHA | CE6810-48S-LI-B | CE6810-48S-LI Switch (48-Port 10G SFP+, 2*FAN Box, Port-side Intake, Without Power Module) |
| 02350AQA | CE6810-48S-LI | CE6810-48S-LI Switch (48-Port 10GE SFP+, Without Fan Box and Power Module) |
