|RJ-45-based Ports:||3||SFP-based Ports:||2|
|Onboard ISC Slot:||1||Rack Height:||2 RU|
cisco ethernet router,
cisco network router

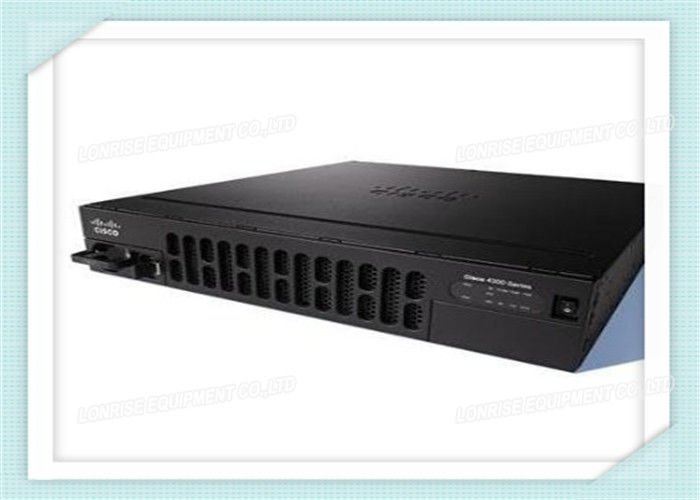

Cisco ISR4351-V/K9 Industrial Network Integrated Service Router Voice Bundle
CISCO ISR4331/K9 Overview
Cisco ISR4351-V/K9 is ideally designed for the mid-size or even large enterprise branch environment, deliver advanced services and unprecdent level of WAN intelligence with VOIP features enabled.Scalability, High-performance, Network Services, Security and smart router is made to run multiple services.Advanced network services enable the branch to utilize the WAN intelligently is really what ISR4351/K9 all about.With feature like , Voice, AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the Cisco Integrated Services Router 4351 include supporting OnePk, AppNav, making the platform easier to scale the network and application integration.
Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry.ISR 4351 delivering 200Mbps-400Mbps performance on demand,with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. This greatly simplifies the portfolio with only two platforms needed to cover 200Mpbs through 400Mbps performance levels. The Cisco Integrated Service router 4351 includes another industry first, which support service containers, these pluggable visual machines utilize dedicated CPU, memory and storage within platform for tightly couple the network services without needs for additional modules.
|Description||Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle)|
|Aggregate Throughput||200 Mbps to 400 Mbps|
|Total onboard WAN or LAN 10/100/1000 ports||3|
|Enhanced service-module slots||2|
|Doublewide service-module slots||1 (assumes no singlewide SM-X modules installed)|
|OIR (all I/O modules)||Yes|
|Onboard ISC slot||1|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
(Combined control/services/data planes)
|Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)||16 GB|
|Default memory DDR3 ECC DRAM (data plane)||NA|
|Maximum memory DDR3 ECC DRAM (data plane)||NA|
|Default memory DDR3 ECC DRAM (control/services plane)||NA|
|Maximum memory DDR3 ECC DRAM (control/services plane)||NA|
|Default flash memory||4 GB|
|Maximum flash memory||16 GB|
|External USB 2.0 slots (type A)||2|
|USB console port -type B mini (up to 115.2 kbps)||1|
|Serial console port - RJ45 (up to 115.2 kbps)||1|
Serial auxiliary port - RJ45
(up to 115.2 kbps)
|Power-supply options||Internal: AC, DC, and PoE|
|Redundant power supply||N/A|
|AC input voltage||100 to 240 VAC autoranging|
|AC input frequency||47 to 63 Hz|
|AC input current range, AC power supply (maximum)||7.1 to 3.0A|
|AC input surge current||60 A peak and less than 12 Arms per half cycle|
|Typical power (no modules) (watts)||48|
|Maximum power with AC power supply (watts)||430|
|Maximum power with PoE power supply (platform only) (watts)||990|
|Maximum endpoint PoE power available from PoE power supply (watts)||500|
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
