Brand Name: | Huawei | Model Number: | TNF1SP3DA |
---|---|---|---|
Dimensions (H X W X D): | 221 Mm X 442 Mm X 224 Mm | Capacity: | 700 Gbit/s |
Maximum Rate Per Channel: | 100 Gbit/s | Maximum Number Of CWDM: | 8 Wavelengths |
Lead Time: | 1-2 Days | Warranty: | 1 Year |
High Light: | Electrical Interface SDH Board,Huawei OSN 1800 Electrical Interface Board |

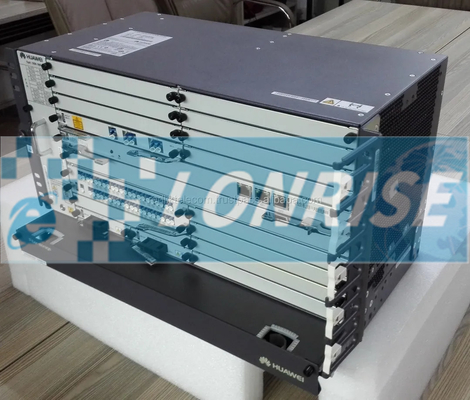

TNF1SP3DA Huawei OSN 1800 SDH Board 42xE1/120ohm(T1/100ohm) Electrical Interface Board
This topic describes product highlights in terms of the architecture and technology.
MS-OTN compliance and compact design (5U-high), supporting the access of any-rate services
Environmentally friendly, power saving, and easy to deploy and maintain
Distinguished architecture, providing high reliability and secure data transport
Transmission of all services over a single network
Long-distance transmission with fewer nodes
Lower maintenance expenditure and operation expenditure
Hybrid networking of CWDM and DWDM
Environment-friendly with lower power consumption
This topic describes the appearance and system specifications of the OptiX OSN 1800 enhanced packet products (OptiX OSN equipment for short).
Specifications | Description | |
---|---|---|
Product appearance | ||
Dimensions (H x W x D) | 221 mm x 442 mm x 224 mm | |
Number of slots for service boards |
|
|
Optical switching capability | 1 to 9-degree reconfigurable optical add/drop multiplexer (ROADM) | |
Product capacity | OTN | 700 Gbit/s ODUk (k = 0, 1, 2, 2e, flex or 4) |
Packet service | 700 Gbit/s | |
TDM | Higher order: 280 Gbit/s; lower order: 20 Gbit/s | |
Maximum number of wavelengths | DWDM | 80 wavelengths |
CWDM | 8 wavelengths | |
Wavelength range |
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (S+C+L Band, ITU-T G.694.2) |
|
Maximum rate per channel | 100 Gbit/s | |
Service types | SDH service, PDH service, OTN service, Ethernet service, CPRI service, OBSAI service, SAN service, video service, and others | |
Line rate | 2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s | |
Pluggable optical/electrical module |
|
|
Topology | Point-to-point, chain, star, ring, ring-with-chain, intersecting rings, and tangent rings | |
Applications | Pure packet networks, pure OTN networks, pure TDM networks, MS-OTN networks (OTN+Packet+TDM), hybrid networks (Packet+TDM), OTN+Packet networks, and OTN+TDM networks | |
Redundancy and Protection | Network level protection (OTN) | Client 1+1 protection, intra-board 1+1 protection, ODUk SNCP, and optical line protection, tributary SNCP, LPT |
Network level protection (packet) | MPLS-TP 1:1 tunnel APS, MPLS-TP 1:1 PW APS, MC-LAG, LPT, LAG, ERPS, MRPS | |
Network level protection (TDM) |
|
|
Equipment level protection |
|
|
Optical power management | ALS, AGC | |
Maintenance | MPLS-TP OAM | Supports CC, RDI, AIS, LB, LT, one-way LM, two-way DM, LCK, TST, and CSF. |
ETH OAM (packet) |
|
|
ETH OAM (TDM) |
|
|
Port mirroring (TDM) | Supports port mirroring that enables service analysis and fault diagnosis without affecting services.
|
|
Port mirroring (packet) | Supports port mirroring that enables service analysis and fault diagnosis without affecting services.
|
|
Port traffic mirroring (packet) | Supports port traffic mirroring that enables service analysis and fault diagnosis without affecting services.
|
|
Synchronization | OTN |
|
Packet |
|
|
TDM |
|
|
DCN | Outband DCN | Supports 225 outband DCN channels, which can be electric supervisory channels (ESCs) or optical supervisory channels (OSCs). |
Inband DCN | Supports 64 inband DCN channels. Channel bandwidth are configurable. | |
TP-Assist |
|
|
Standard working voltage |
|
|
Mounting option |
NOTE:
OptiX OSN 1800 can be installed horizontally or vertically in a 19-inch or an ETSI cabinet. |
|
Running environment | Chassis temperature |
|
Chassis relative humidity |
|
|
ETSI conformity | ETSI Class 3.1
NOTE:
ETSI standards define temperature and humidity environments, where equipment is located.
|
|
Reliability Specifications | System availability | 0.9999965, which indicates that the annual operation cessation time of the equipment is not more than two minutes |
System mean annual repair rate | Less than 1.5% | |
MTTR (system mean repair time) | 4 hours | |
MTBF (system mean fault interval) | 129.63 years | |
a: A short term refers to a maximum of 72 consecutive operating hours and the total time of short-term operating in a year cannot exceed 15 days. |
