Product Details:
|
Model: | BBU5900A 02312RTQ 02312RSS Base Station | Discount Category: | BBU5900A 02312RTQ 02312RSS Telecom Equipment |
---|---|---|---|
Key Word: | BBU5900A 02312RTQ 02312RSS Telecommunications Equipment | Sub Product Family: | Energy (For Network) |
Product Series: | Spare Parts For Telecom Power | Warranty: | 1 Year |

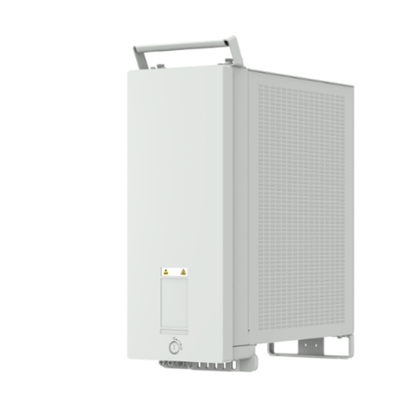

huawei BBU5900A 02312RTQ 02312RSS function module the telecom equipment Smalcell Matching Board base band

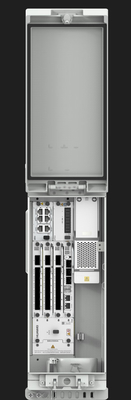

A BBU consists of the following subsystems: baseband subsystem, power and mechanical subsystem, transmission subsystem, interconnection subsystem, main control subsystem, monitoring subsystem, and clock subsystem. Each subsystem consists of different modules, as listed in the following table.
Subsystem | Module |
Power and mechanical subsystem | Backplane, fan unit (FAN), and power and environment interface unit (PEU) |
Main control subsystem | MPT |
Baseband subsystem | Baseband processing unit (BBP) |
Transmission subsystem | MPT |
Interconnection subsystem | MPT |
Clock subsystem | MPT |
Monitoring subsystem | Environment interface unit (EIU) |
Board Type | Boards Supported by the BBU |
Main control board | UMPTe (UMPTe1/UMPTe2)a |
UMPTg (UMPTg1/UMPTg2/UMPTg3) | |
UMPTga (UMPTga1/UMPTga2/UMPTga3) | |
Baseband processing unit | UBBPg(UBBPg1/UBBPg1a/UBBPg2/UBBPg2a/UBBPg3b/UBBPg3/UBBPg4) |
UBBPe (UBBPe1/UBBPe2/UBBPe3/UBBPe4/UBBPe5/UBBPe6/UBBPe18) | |
UBBPd (UBBPd1/UBBPd2/UBBPd3/UBBPd4/UBBPd5/UBBPd6/UBBPd9) | |
UBBPem | |
UBBPf1 | |
UBBPex2 | |
UBBPf3 | |
Fan module | FANf |
FANh | |
Power module | UPEUh |
Environment monitoring unit | UEIUd |
Power surge protection module | UPSUb |
Board Type | Boards Supported by the BBU |
Main control board | UMPTe (UMPTe1/UMPTe2)a |
UMPTg (UMPTg1/UMPTg2/UMPTg3) | |
UMPTga (UMPTga1/UMPTga2/UMPTga3) | |
Baseband processing unit | UBBPg(UBBPg1/UBBPg1a/UBBPg2/UBBPg2a/UBBPg3b/UBBPg3/UBBPg4) |
UBBPe (UBBPe1/UBBPe2/UBBPe3/UBBPe4/UBBPe5/UBBPe6/UBBPe18) | |
UBBPd (UBBPd1/UBBPd2/UBBPd3/UBBPd4/UBBPd5/UBBPd6/UBBPd9) | |
UBBPem | |
UBBPf1 | |
UBBPex2 | |
UBBPf3 | |
Fan module | FANf |
FANh | |
Power module | UPEUg |
Environment monitoring unit | UEIUd |
Power surge protection module | UPSUa |
a: The UMPTe is applicable only to areas above -20°C (-4 °F). |
