Product Details:
|
| Model: | GLC-ZX-SM | Form Factor: | SFP |
|---|---|---|---|
| Wavelength: | 1550 Nm | Max Distance: | 70 Km |
| Data Rate: | 1.25Gb/s | Weight: | 0.025 Kg |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Lead Time: | 2-3 Days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS | ||
| High Light: | GLC-ZX-SM,Duplex LC SFP Transceiver Module |
||

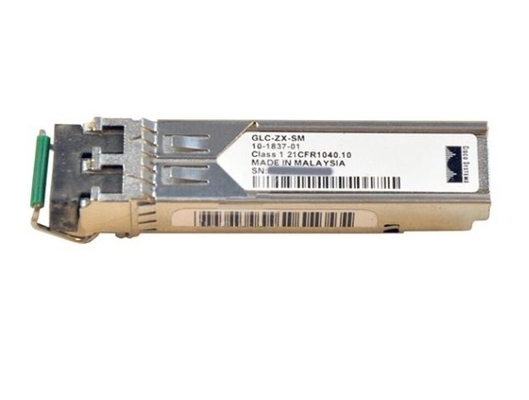

1000BASE-ZX SFP for Long-Reach Single-Mode Fibers
The 1000BASE-ZX SFP operates on standard single-mode fiber-optic link spans of up to approximately 70 km in length. The SFP provides an optical link budget of 21 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.
When shorter distances of single-mode fiber (SMF) are used, it might be necessary to insert an inline optical attenuator in the link to avoid overloading the receiver. A 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the SFP at each end of the link whenever the fiber-optic cable span loss is less than 8 dB.
| Compatible OEM Part Number | GLC-ZX-SM | Optcore Part Number | OSP1250-5580DCR-CSC |
| Form Factor | SFP | Data Rate | 1.25Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 70 km | Optical Components | DFB/PIN |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -26 dBm | Receiver Overload | > 0 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
