Product Details:
|
| Model: | GLC-SX-MM D | Max Transfer Distance: | 550 M |
|---|---|---|---|
| Data Transfer Rate: | 1.25Gbps | Wavelength: | 850 Nm |
| Connector: | Duplex LC | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Lead Time: | 2-3 Days |
| Payment: | T/T, Western Union, Paypal | Shipping: | DHL, Fedex, UPS |

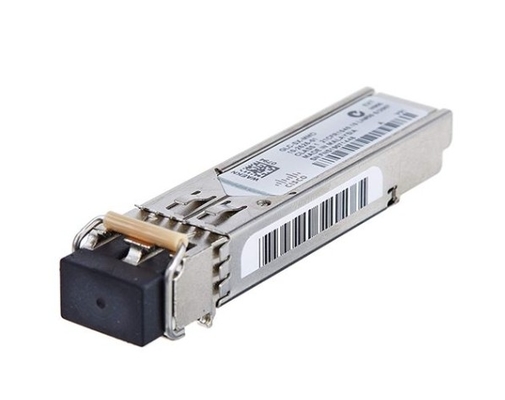

The GLC-SX-MM D 1000BASE-SX SFP is made for Multimode Fiber only.

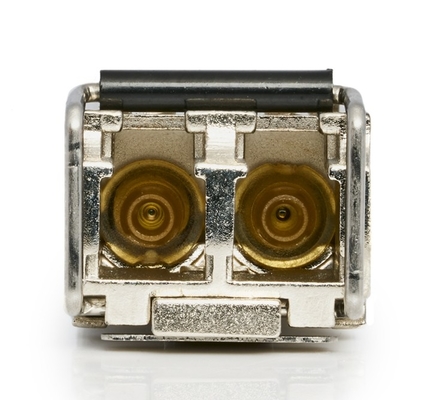

The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable. 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.
SFP Port Cabling Specifications
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
|
1000BASE-SX (GLC-SX-MM D) |
850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
| 62.5 | 200 (OM1) | 275 (902 ft) | |||
| 50 | 400 (400/400) | 500 (1,640 ft) | |||
| 50 | 500 (OM2) | 550 (1,804 ft) | |||
| 50 | 2000 (OM3) | 1000 (3281 ft) | |||
|
1000BASE-LX/LH |
1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) | |||
| 50 | 500 | 550 (1,804 ft) | |||
| SMF | -** | - | 10,000 (32,821 ft) | ||
| 1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 ft) |
|
1000BASE-ZX (GLC-ZX-SM ) (GLC-ZX-SMD ) |
1550 | SMF | - | - | Approximately 70 km depending on link loss |
| 1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 ft) |
| 1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 ft) |
