Product Details:
|
| Hardware Type: | Indoor AP | Antenna Type And Peak Gain: | PIFA: 4 DBi For 2.4 GHz, 5 DBi For 5 GHz |
|---|---|---|---|
| Maximum Data Rate: | Radio 1: Up To 400 Mbps Radio 2: Up To 867 Mbps | Bluetooth Low Energy (BT/BLE) Radio: | Bluetooth Scanning And IBeacon Advertisement @ 4 DBm Max TX Power |
| Interfaces: | 1x 10/100/1000 Base-T RJ45 | Warranty: | 1 Year |
| High Light: | FAP-221E-C RJ45 Port,Indoor Wireless RJ45 Port |
||

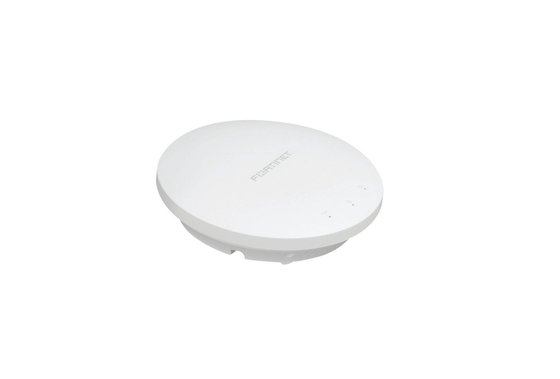

FAP-221E-C 531 Indoor Wireless AP 1x GE RJ45 port 802 11 a/b/g/n/ac Wave 2:
FAP-221E Specification |
|
| Hardware | |
| Hardware Type | Indoor AP |
| Number of Radios | 2 + 1 BT/BLE |
| Number of Antennas | 4 Internal + 1 Internal BT/BLE |
| Antenna Type and Peak Gain | PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,5.725–5.850 |
| Radio 1 Capabilities |
2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
| Radio 2 Capabilities |
5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
| Maximum Data Rate |
Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Interfaces | 1x 10/100/1000 Base-T RJ45 |
| Power over Ethernet (PoE) | IEEE 802.3af |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™ and WPA2™ with 802.1x or Preshared key, WEP,Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power |
2.4 GHz: 23 dBm / 200 mW (2 chains combined)* 5 GHz: 24 dBm / 251 mW (2 chains combined)* |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X,802.3af, 802.3az |
| SSID Types Supported | Local-Bridge, Tunnel, Mesh |
| Per Radio Client Capacity | Up to 512 |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| 802.11ac MU-MIMO Wave 2 | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| Wireless Monitoring Capabilities | |
| Rogue Scan Radio Modes | Background, Full-time |
| WIPS / WIDS Radio Modes | Background, Full-time |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 6.3 x 6.3 x 1.85 inches(160 x 160 x 47 mm) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | SP-FAP200-PA-XX, GPI-115,or GPI-130 |
| Power Consumption (Max.) | 12.36 W |
| Humidity | 5–90% non-condensing |
| Operating / Storage Temperature | -4–113°F (-20–45°C) /-40–158°F (-40–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | >30 Years |
| IP Rating | |
| Surge Protection Built In | |
| Hit-less PoE Failover | No |
| Certifications | |
| Wi-Fi Alliance Certified | Yes |
| DFS | FCC, IC, CE, Japan, Taiwan |
| Warranty | |
| Limited Lifetime Warranty | Yes |
| * Frequency selection and power may be restricted to abide by regional regulatory compliance laws. | |
