Product Details:
|
| Model: | QSFP-100G-SR4 | Name: | QSFP - 100G - SR4 - S = - Cisco 100 Gigabit Optical Modules Best Price |
|---|---|---|---|
| Detail: | 100GBASE SR4 QSFP Transceiver, MPO, 100m Over OM4 MMF | Condition: | 100% Original New |
| Port: | Shanghai | MOQ: | 1 |
| Dimensions: | 13.5 X 18.4 X 72.4 Mm | Nominal Wavelength (nm): | 850 |
| High Light: | 100GBASE Cisco SFP Modules,Optical Transceiver Modules,SR4 100 Gigabit Optical Modules |
||

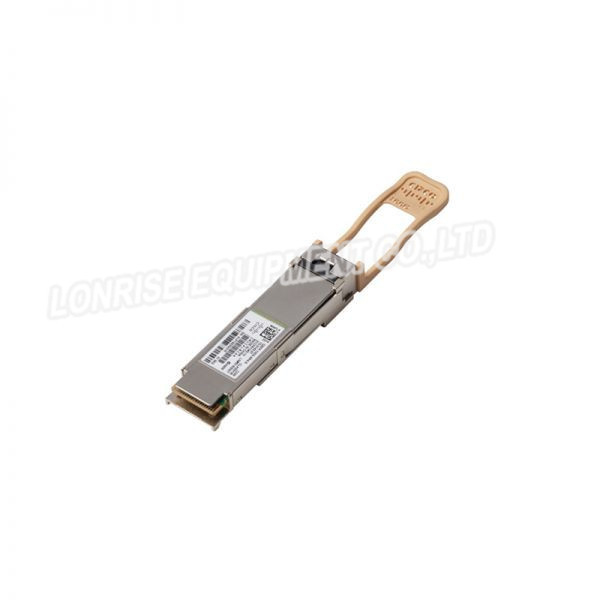

QSFP - 100G - SR4 - S = - Cisco 100 Gigabit Optical Modules best price
The Cisco® 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor.
QSFP-100G Optical modules provide these highlights:
•Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port
•Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
•Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability
•High-speed electrical interface compliant to IEEE 802.3bm
QSFP-100G-SR4-S= Specification |
|
| Description | 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| QSFP Port cabling specifications | |
| Nominal Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (Microns) |
50.0 50.0 |
| Modal Bandwidth (MHz*km)*1 |
2000 (OM3) 4700 (OM4) |
| Cable Distance |
70m 100m |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Beige |
| *1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm | |
| Optical characteristics | |
| Transmit Power (dBm) per lane*2 |
Max:+2.4 Min:-8.4 |
| Receive Power (dBm) per lane*2*3 |
Max:+2.4 Min: -10.3 |
| Receive Power (dBm) per lane | 840 to 860 |
|
*2 Transmitter and receiver power is average optical power, unless specified *3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation |
|
| Environmental Conditions and Power Requirements | |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Regulatory and Standards compliance | |
| Standards |
•SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013 •SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014 •802.3™-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6 |
| Safety |
•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV compliant |
the comparison.
| Product Code | QSFP-100G-CWDM4-S= | QSFP-100G-ER4L-S= | QSFP-100G-LR4-S= | QSFP-100G-PSM4-S= | QSFP-100G-SM-SR= | QSFP-100G-SR4-S= | QSFP-40/100-SRBD= |
| Description | Cisco 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF | Cisco 100GBASE QSFP Transceiver, 40KM reach over SMF, Duplex LC | 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF | 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF | Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C | 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF | 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm |
| Nominal Wavelength (nm) | 1271, 1291, 1311, 1331 | 1295, 1300, 1304, 1309 | 1295, 1300, 1304, 1309 | 1310 | 1271, 1291, 1311, 1331 | 850 | 855, 908 |
| Cable Type | SMF | SMF | SMF | SMF | SMF | MMF | MMF |
| Core Size (Microns) | G.652 | G.652 | G.652 | G.652 | G.652 |
50.0 50.0 |
50.0 50.0 |
| Modal Bandwidth (MHz*km) |
2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
|||||
| Cable Distance | 2km |
40km (with host FEC) 30km (without host FEC) |
10km | 500m | 2km |
70m 100m |
70m 100m |
| Power Consumption (W) | 3.5 | 4.5 | 4.0 | 3.5 | 3.5 | 3.5 | 3.5 |
| Pull Tab Color | Green | Rad | Blue | Orange | Green | Beige | Gray |
