Product Details:
|
| Modle: | OSXO10000 | Name: | Compatible OSXO10000 10G SFP+ LR Dual Transceiver Optical Module |
|---|---|---|---|
| Detail: | SFP-10G-1310NM LR FIBER MODULE | Form Factor: | SFP+ |
| Center Wavelength [nm: | 5 | Application Standard: | 10GBASE-LR |
| MOQ: | 1 | Condition: | 100% Original New |
| High Light: | Compatible Transceiver Optical Module,Dual Transceiver Optical Module,LR Huawei SFP Transceiver |
||

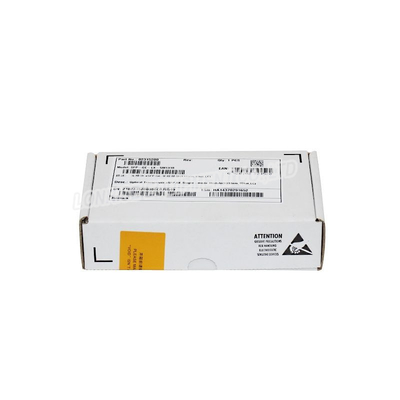

Compatible OSXO10000 10G SFP+ LR dual transceiver optical module
| Item | Value |
|---|---|
| Basic Information | |
| Module name | OSX010000 |
| Part Number | 02318170 |
| Model | OSX010000 |
| Form factor | SFP+ |
| Application standard | 10GBASE-LR |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 10 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 10 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | 0.5 dBm |
| Minimum Tx optical power [dBm] | -8.2 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -12.6 dBm |
| Overload power [dBm] | 0.5 dBm |
