Product Details:
|
| Model: | OSX010000 | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Transmission Speed: | 10 Gbit/s | Center Wavelength (nm): | 1310 |
| Standard Compliance: | 10Gbase-LR | Connector Type: | LC |
| Maximum Receiver Sensitivity (dBm): | -12.6 | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Payment: | T/T, Western Union, Paypal |
| Shipment: | DHL, Fedex, UPS | ||
| High Light: | 10km Huawei Optical Transceiver OSX010000,1310nm Huawei Optical Transceiver OSX010000,10G Huawei Optical Transceiver OSX010000 |
||

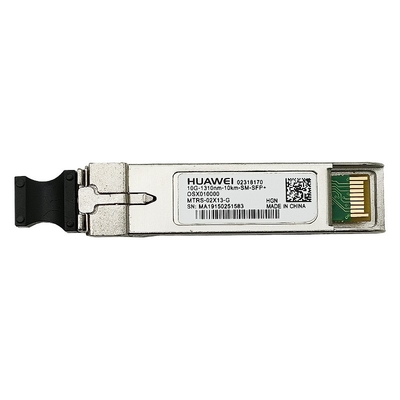

Huawei OSX010000 is a 10G Optical Transceiver. It’s a Single-mode Module.
Table shows the Huawei hot switches which support OSX010000.
| Model | Description |
| S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
| S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
| S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
| S5720-36C-EI-AC |
28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC |
| S5700-28C-EI-AC | 24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply |
| S5720-56C-HI-AC | 48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply |
| S5720-56PC-EI-AC | 48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply |
| S5720-56C-PWR-HI-AC | 48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply |

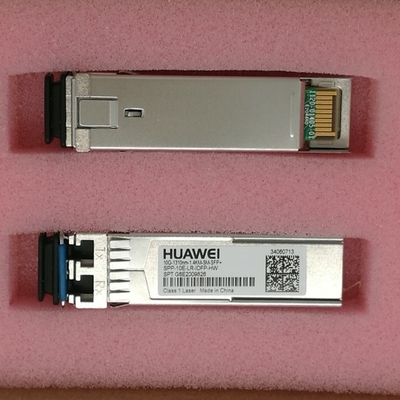

| Item | OSX010000 | OMXD30000 |
| Transceiver form factor | SFP+ | SFP+ |
| Transmission speed | 10 Gbit/s | 10 Gbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 10Gbase-LR | 10GBASE-iLR |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 10 km | Single-mode fiber: 1.4 km |
| Transmit power (dBm) | -8.2 to +0.5 | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 | -14.4 |
| Overload power (dBm) | 0.5 | 0.5 |
| Extinction ratio (dB) | 3.5 | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | -40°C to +85°C (-40°F to +185°F) |
OSX010000 Specification |
|
| Transceiver form factor | SFP+ |
| Transmission speed | 10 Gbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 10Gbase-LR |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
| Transmit power (dBm) | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 |
| Overload power (dBm) | 0.5 |
| Extinction ratio (dB) | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
