Product Details:
|
| Model: | SFP-GE-LX-SM1310 | Name: | Huawei SFP-GE-LX-SM1310 Optical Transceiver |
|---|---|---|---|
| Detail: | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | MOQ: | Q |
| Port: | Shanghai | Condition: | 100% Original New |
| Type: | LC | Extinction Ratio (dB): | 9 |
| High Light: | LC Connector SFP Optical Module,Huawei Optical SFP Module,Single Mode SFP Transceiver |
||

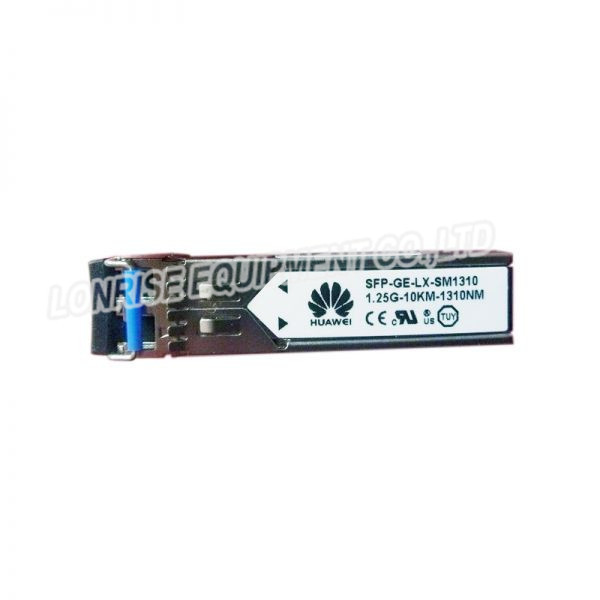

Huawei SFP-GE-LX-SM1310 Optical Transceiver best price
the Quick Specs.
| Product Code | SFP-GE-LX-SM1310 |
| Transceiver form factor | eSFP |
| Transmission speed | 1 Gbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 1000base-LX/LH |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
| Transmit power (dBm) | -9.0 to -3.0 |
| Maximum receiver sensitivity (dBm) | -20.0 |
| Overload power (dBm) | -3.0 |
| Extinction ratio (dB) | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
the comparison of S-SFP-GE-LH40-SM1310 and SFP-GE-LX-SM1310.
| Item | S-SFP-GE-LH40-SM1310 | SFP-GE-LX-SM1310 |
| Transceiver form factor | eSFP | eSFP |
| Transmission speed | 1 Gbit/s | 1 Gbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 1000base-LX/LH | 1000base-LX/LH |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 40 km | Single-mode fiber: 10 km |
| Transmit power (dBm) | -5.0 to 0 | -9.0 to -3.0 |
| Maximum receiver sensitivity (dBm) | -23 | -20.0 |
| Overload power (dBm) | -3.0 | -3.0 |
| Extinction ratio (dB) | 9 | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 | 110 x 70 x 37 |
the Huawei hot switches which support SFP-GE-LX-SM1310.
| Model | Description |
| S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
| S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
| S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
| S5720-36C-EI-AC |
28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC |
| S5700-28C-EI-AC | 24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply |
| S5720-56C-HI-AC | 48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply |
| S5720-56PC-EI-AC | 48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply |
| S5720-56C-PWR-HI-AC | 48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply |
