Overview
The Huawei S5735-S24P4XE-V2 is an enterprise-class Layer 3 managed Gigabit Ethernet switch designed for campus networks, enterprise access, IP surveillance, wireless deployments, and medium-sized data center environments. It provides 24 Gigabit PoE Ethernet ports together with 4 high-speed 10GE SFP+ uplink ports, delivering reliable power and high-bandwidth connectivity for modern business applications.
Built on Huawei's CloudEngine switching platform, the S5735-S24P4XE-V2 offers advanced Layer 2/Layer 3 services, intelligent traffic management, comprehensive security features, and flexible network scalability. It supports enterprise virtualization, IPv4/IPv6 dual stack, QoS, ACL, ERPS, VRRP, and intelligent O&M capabilities, making it an excellent solution for growing enterprise networks. The S5735-S24P4XE-V2 combines high forwarding performance with energy-efficient operation for long-term network investment. Specifications commonly include 24×GE PoE ports, 4×10GE SFP+ uplinks, Layer 3 routing features, and enterprise management capabilities.

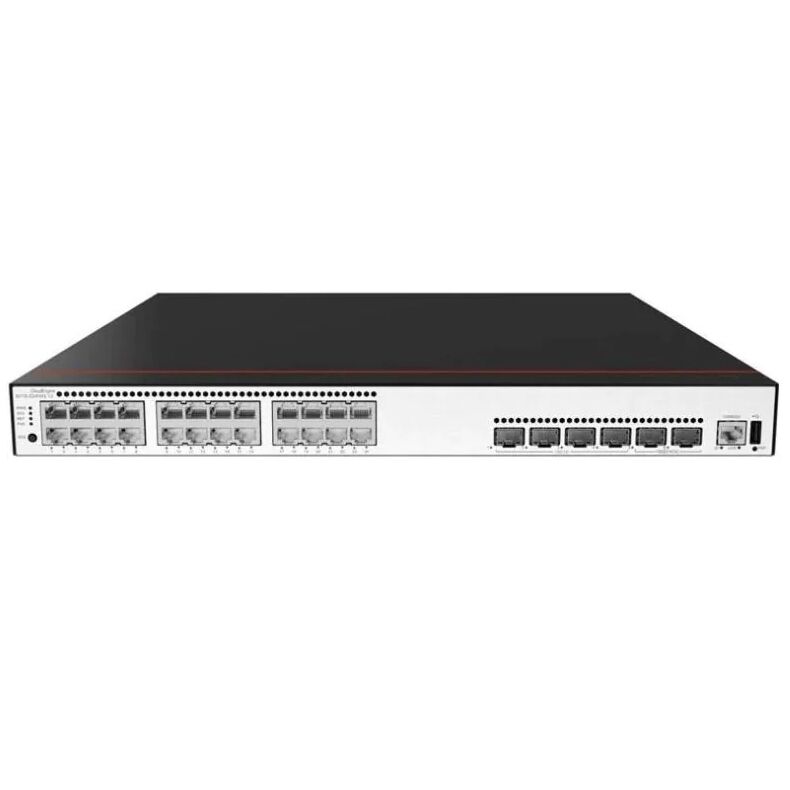

Figure 1 shows the front panel of S5735-S24P4XEZ-V2.
Quick Specifications
| Item |
Specification |
| Model |
S5735-S24P4XE-V2 |
| Ethernet Ports |
24 × 10/100/1000Base-T PoE |
| Uplink Ports |
4 × 10GE SFP+ |
| Switching Capacity |
Up to 128 Gbps |
| Forwarding Rate |
Up to 95.23 Mpps |
| Layer |
Layer 3 Managed Switch |
| PoE |
IEEE 802.3af/at |
| Routing |
Static, RIP, OSPF, VRRP |
| VLAN |
4K VLAN |
| Rack Mount |
1U |
Key Features
High-Speed Enterprise Connectivity
24 Gigabit Ethernet PoE ports provide reliable wired connectivity while four dedicated 10GE SFP+ uplinks eliminate network bottlenecks and support high-bandwidth aggregation.
Advanced Layer 3 Routing
Supports static routing, RIP, OSPF, VRRP, ECMP, IPv4/IPv6, multicast routing, and policy-based routing to simplify enterprise network architecture.
Intelligent PoE Power Supply
Provides IEEE 802.3af/802.3at PoE for:
- Wireless Access Points
- IP Cameras
- VoIP Phones
- IoT Devices
- Security Systems
Enterprise Security
Supports:
- 802.1X Authentication
- MAC Authentication
- ACL Security
- DHCP Snooping
- ARP Protection
- Storm Control
- SSH
- SNMPv3
Energy Efficient Design
Intelligent power management reduces operating costs while maintaining excellent switching performance.
Technical Specifications
| Specification |
Details |
| Product Name |
Huawei S5735-S24P4XE-V2 |
| Product Type |
Layer 3 Managed Switch |
| Fixed Ports |
24×10/100/1000Base-T PoE |
| Uplink |
4×10GE SFP+ |
| Switching Capacity |
128 Gbps |
| Forwarding Performance |
95.23 Mpps |
| MAC Address |
16K |
| VLAN |
4094 VLAN |
| Jumbo Frame |
9216 Bytes |
| QoS |
SP, WRR, DRR |
| IPv6 |
Supported |
| Routing |
Static, RIP, OSPF, VRRP |
| Security |
ACL, 802.1X, DHCP Snooping |
| Management |
CLI, SNMP, Web, SSH |
| Mounting |
1U Rack |
Applications
The Huawei S5735-S24P4XE-V2 is widely deployed in:
- Enterprise Campus Networks
- Government Organizations
- Education Networks
- Healthcare Facilities
- Hotel Networks
- Retail Chains
- Manufacturing Plants
- Office Buildings
- IP Surveillance Systems
- Wireless AP Deployments
Why Choose the Huawei S5735-S24P4XE-V2?
✔ Enterprise-grade reliability
✔ High-performance Layer 3 routing
✔ 24 Gigabit PoE access ports
✔ 4 dedicated 10GE SFP+ uplinks
✔ IPv4/IPv6 dual-stack support
✔ Comprehensive network security
✔ Easy deployment and management
✔ Long product lifecycle
Product Comparison
| Model |
Ethernet Ports |
PoE |
10GE Uplink |
Best For |
| S5735-S24T4XE-V2 |
24 |
No |
4×10GE |
Standard Enterprise Access |
| S5735-S24P4XE-V2 |
24 |
Yes |
4×10GE |
Wireless AP & IP Camera Deployment |
| S5735-S48P4XE-V2 |
48 |
Yes |
4×10GE |
Large Enterprise Networks |
FAQ
Is the S5735-S24P4XE-V2 a Layer 3 switch?
Yes. It supports Layer 2 and Layer 3 networking features including static routing, RIP, OSPF, VRRP, IPv4/IPv6 routing, ACLs, and advanced QoS.
Does this switch support PoE?
Yes. The switch supports IEEE 802.3af/802.3at PoE standards, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other powered devices.
What types of SFP modules are compatible?
The switch supports Huawei-compatible 10GE SFP+ optical transceivers and DAC cables for high-speed uplink connectivity.
What is the difference between the S24P4XE-V2 and S24T4XE-V2?
The S24P4XE-V2 includes PoE functionality for powering network devices, while the S24T4XE-V2 provides standard Gigabit Ethernet ports without PoE capability.
Can this switch be used in enterprise campus networks?
Absolutely. It is designed for enterprise access, campus aggregation, surveillance systems, wireless networks, and branch office deployments.
Does it support IPv6?
Yes. It fully supports IPv4/IPv6 dual-stack networking and advanced IPv6 routing features.
After-sales Service
We are committed to providing reliable products and professional technical support.
Our Service Includes:
- 100% Original Huawei Equipment
- Fully Tested Before Shipment
- Global Express Delivery
- Professional Pre-sales Consultation
- Technical Configuration Support
- Flexible Payment Options
- Secure Packaging
- Warranty Service
- Fast Response Within 24 Hours
- Long-term Project Supply Support
