CE5810-24T4S-EI, Huawei CE5810 Switch , 24xGE RJ45/4x10GE SFP+/No Fan & PSU

CE5810-24T4S-EI Switch 24-Port GE RJ45, 4-Port 10GE SFP+, Without Fan and Power Module. It is one of the Huawei CloudEngine CE5800 series (CE5800 for short) switches. The Huawei CloudEngine CE5800 series switches are next-generation, high-density Gigabit Ethernet switches designed for data centers and high-end campus networks. The hardware has an advanced architectural design with the industry’s highest density of GE access ports. The CE5800 is also the first Gigabit Ethernet access switch to provide 40 GE uplink ports.

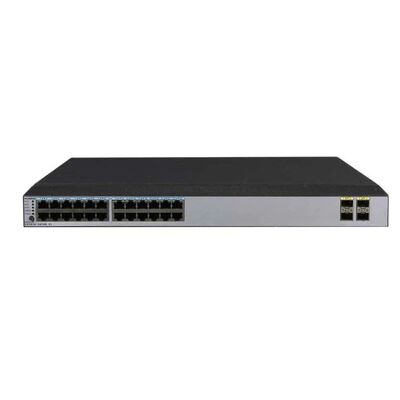

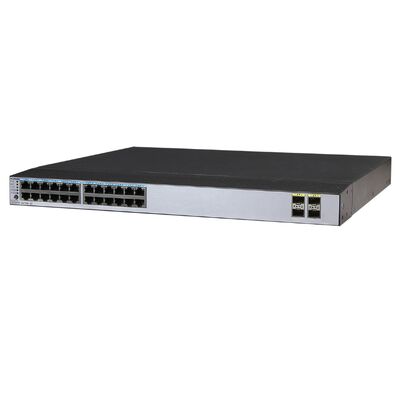

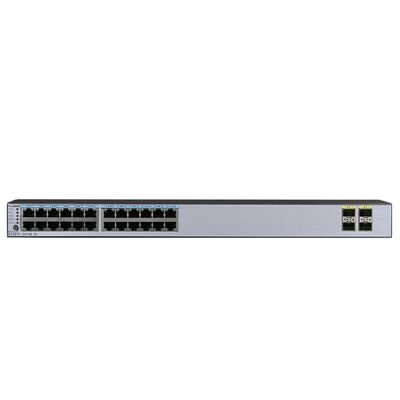

Figure 1 shows the appearance of CE5810-24T4S-EI.



Switching Capacity	128 Gbit/s
Forwarding Rate	96 Mpps
Power module type	Pluggable AC or DC power module, 1+1 backup supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum power consumption	68 W
Fan type	Pluggable fan module
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight (fully loaded)	8 kg (17.6 lb)
