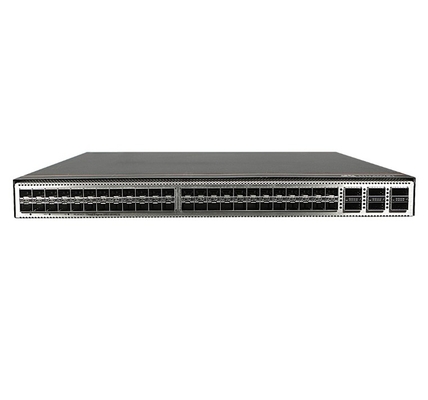

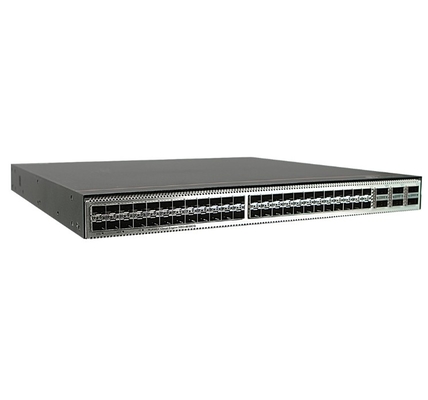

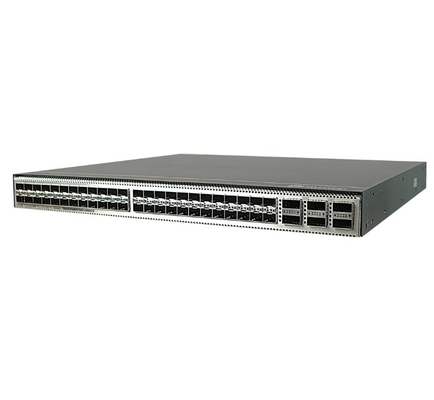

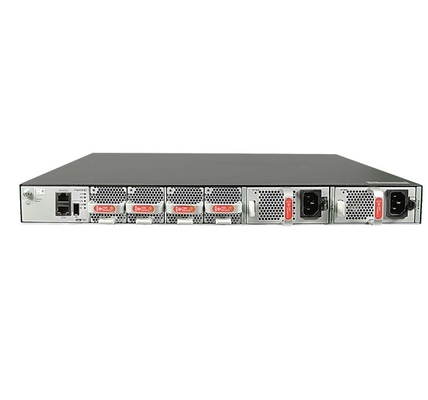

CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet

CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet
CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet

Large Image :  CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: CE6863E-48S6CQ-F
Contact Now

CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet

Description
Model: CE6863E-48S6CQ-F Ports: 25GE Optical Ports, And 100GE Optical Ports
Processor: 1.4 GHz, Four-core DRAM Memory: 4 GB
NOR Flash: 64 MB NAND Flash: 4 GB
Dimensions: 1.72 In. X 17.4 In. X 17.6 In Condition: Brand New Sealed
Warranty: 1 Year Payment: T/T, Western Union, Paypal
Shipment: DHL, Fedex, UPS
Highlight:

Huawei CloudEngine 6800 6*100G QSFP28

,

Huawei CloudEngine 6800 48*25G SFP28

CE6863-48S6CQ Overview

CloudEngine 6800 is well suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet 0

CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet 1

Supported Transceivers
ModelDescription
OMXD30000Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
SFP-GE-LX-SM1310Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OMXD30009Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
ESFP-GE-SX-MM850Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)
CE6863-48S6CQ-F Specification
CE6863-48S6CQ-F Specification
ItemDescription
Physical specifications
  • Dimensions (H x W x D)
    • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
    • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
Environment parametersTemperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity5% RH to 95% RH, noncondensing
Altitude< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 58 dBA
  • Front-to-back airflow: < 57 dBA
Power specificationsPower source typeAC/DC/HVDC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
  • 600 W AC&240 V DC power module (PAC600S12 series):
    • Rated voltage range: 240 V DC
    • Maximum voltage range: 190 V DC to 290 V DC
  • 1200 W high-voltage DC power module (PHD1K2S12 series):
    • Rated voltage range: 240 V DC to 380V DC
    • Maximum voltage range: 190 V DC to 400 V DC
Rated input current
  • 600 W AC&240 V DC power module (PAC600S12 series):
    • 8 A (100 V AC to 240 V AC)
    • 4 A (240V DC)
  • 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)
  • 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Chassis power consumptionMaximum power consumption384 W
Typical power consumption
  • 226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
  • 261 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Chassis heat dissipationMaximum heat dissipation1310 BTU/hr
Typical heat dissipation
  • 771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
  • 891 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection

Power module:

  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipationHeat dissipation modeAir cooling
AirflowFront-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availabilityPower module backup1+1 backup
Fan module backupThe device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swapSupported by all power modules and fan modules
Mean time between failures (MTBF)47.81 years
Mean time to repair (MTTR)1.95 hours
Availability0.9999962836
Technical specificationsProcessor1.4 GHz, four-core
DRAM memory4 GB
NOR Flash64 MB
NAND Flash4 GB
StackService port supporting the stacking function25GE optical ports, and 100GE optical ports
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

CE6863E-48S6CQ Huawei CloudEngine 6800 48*25G SFP28, 6*100G QSFP28, 2* AC Power Supply, Port Side Air Outlet/ Inlet 2
