Product Details:
|
| Name: | C9300 24T A | Model: | C9300 24T A |
|---|---|---|---|
| Type: | Network Switch | Uplinks: | Modular |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Product Type: | Module | Software: | Network Advantage |
| Model: | Accessory | ||
| Highlight: | Cisco 9300 switch,24T Cisco Catalyst 9300,Cisco Catalyst 9300 24T |
||
The Cisco Catalyst 9300 Series Switches are Ciscos lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24T-Ais 24-port data only, Network AdvantageSwitch of 9300 series. Catalyst 9300 Seriesare the next generation of the industrys most widely deployed switching platform. At 480 Gbps, they are the industrys highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

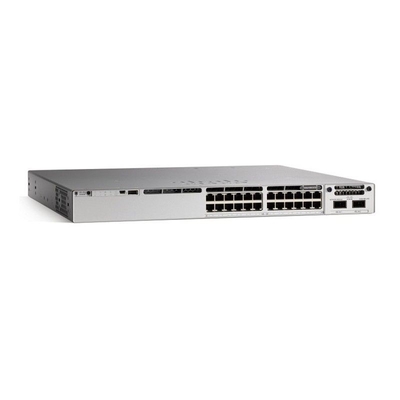

Figure 1 shows the appearance of C9300-24T-A.
Table 1 shows the quick spec.
| Product Code | C9300-24T-A |
| Product Description | Catalyst 9300 24-port data only, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 24 |
| Default AC power supply | 350W AC |
| Available PoE power | -- |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |

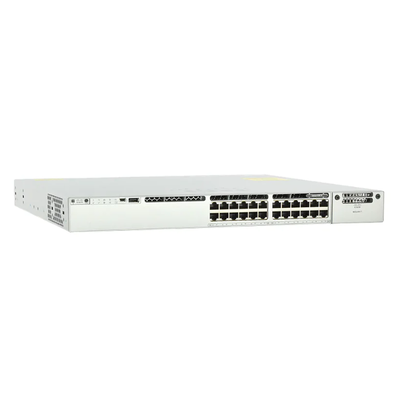

Figure 2 shows the front viewof C9300-24T-A.
The module slot on the right of the front panl dosen't include the module.Network Modules (providing 1G/10G/40G ports) should be purchased seperately.
Note:
| Blue Beacon-for easy of serviceability | |
| optional wireless console access with Bluetooth | |
| Best HA-NSF/SSO | |
| 24 1G ports |

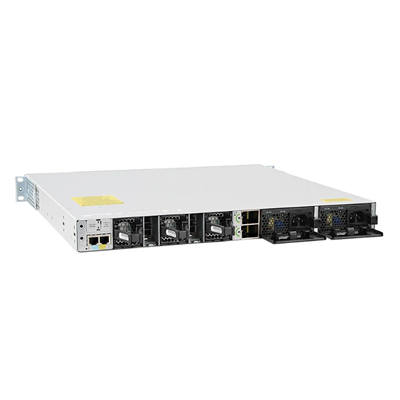

Figure 3shows the rear viewof C9300-24T-A.
Note:
| Local Storage USB 3.0 SSD pluggable | |
| Stackwise-480-Industrys highest stack bandwidth | |
| Modular,Redundant Fans | |
| Intellgent Power management-Cisco StackPower | |
| Optional Power Supply | |
| High- Efficiency Power Supply |
Table 2 shows the recommended elements for the C9300-24T-A.
| Product number | Description |
| C9300-NM-4G | 9300 Series 4x 1G Network Module |
| C9300-NM-8X | 9300 Series 8x 10G Network Module |
| C9300-NM-2Q | 9300 Series 2x 40G Network Module |
| C9300-NM-2Q= | Catalyst 9300 2 x 40GE Network Module, spare |
| C9300-NM-4M | 9300 Series 4x Multigigabit Network Module |
| C9300-NM-4M= | Catalyst 9300 4 x MGig Network Module, spare |
Table 3shows the comparison between C9300-24T-Aand C9300-24P-A.
| Product Code | C9300-24T-A | C9300-24P-A |
| Product Description | Catalyst 9300 24-port data only, Network Advantage | Catalyst 9300 24-port PoE+, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 24 | 24 POE+ |
| Default AC power supply | 350W AC | 715W AC |
| Available PoE power | -- | 445W |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds | 16.33 Pounds |
