Cisco Catalyst C9300L-24T-4G-E Switch | 24-Port 1G Data Switch

Cisco Catalyst 9300L-24T-4G-E Overview

The Cisco Catalyst C9300L-24T-4G-E is a high-performance, enterprise-class Gigabit Ethernet switch designed for secure, reliable, and scalable corporate networks. Featuring 24 ports of 10/100/1000M copper connectivity and 4 fixed 1G SFP uplink ports, this data-only switch is optimized for high-density access layers where Power over Ethernet (PoE) is not required.

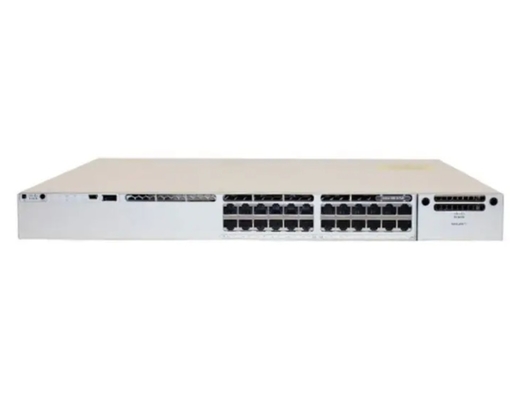

Figure 1 shows the front panel of C9300L-24T-4G-E.

Key Features & Benefits

• Enterprise-Grade Stacking: Supports StackWise-320 technology, allowing you to stack multiple switches and manage them as a single logical unit with up to 320 Gbps of stack bandwidth.

• Advanced Security: Built on Cisco IOS XE architecture, providing integrated security features such as Encrypted Traffic Analytics (ETA), MACsec-128 encryption, and secure segmentation.

• Cloud-Ready Management: Fully compatible with Cisco DNA Center and Cisco ThousandEyes for automated provisioning, real-time analytics, and network monitoring.

C9300L-24T-4G-E Technical Specifications

Frequently Asked Questions (FAQ) & Product Comparison

Q1: What is the main difference between Cisco C9300L-24T-4G-E and standard C9300-24T switches?

A: The "L" in C9300L stands for fixed uplink configurations. The C9300L-24T-4G-E comes with 4 fixed 1G SFP ports, whereas the standard C9300 features modular uplinks that can be upgraded later. For networks with fixed 1G uplink requirements, the C9300L offers a more cost-effective solution while maintaining identical core performance and StackWise support.

Q2: Does the C9300L-24T-4G-E support Power over Ethernet (PoE)?

A: No, this is a Data-Only switch configuration. It is designed for environments requiring high-speed data transmission for devices like desktop PCs, servers, and network printers that have their own power supplies. If your deployment requires PoE/PoE+ to power IP phones or wireless access points, please consider the C9300L-24P-4G-E model.

Q3: Can I use 10G SFP+ optical transceivers in the uplink ports of this switch?

A: No. The uplink ports on the C9300L-24T-4G-E are strictly hardware-limited to 1G SFP transceivers. If you require 10G uplink speeds, you should opt for the C9300L-24T-4X-E model, which features 4 fixed 10G SFP+ uplink ports.

Q4: What warranty and after-sales support services are included?

• Warranty: Covered by our comprehensive 1-year hardware warranty.

• Technical Support: Access to expert network engineers for configuration support, troubleshooting, and hardware installation guidance.

• Global Shipping: Fast, reliable worldwide delivery with real-time tracking to ensure your network deployment meets its deadline.
