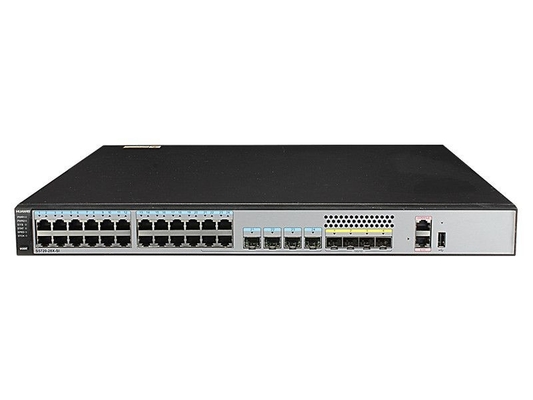

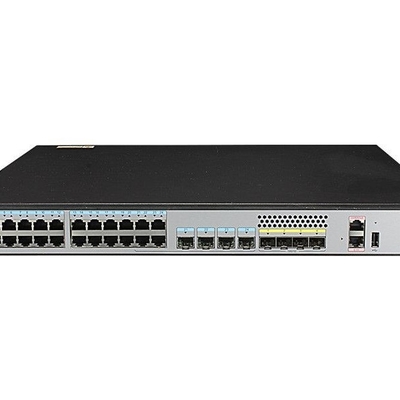

Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+

Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+
Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+ Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+ Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+ Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+

Large Image :  Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: S5720-28X-SI

Huawei S5720 - 28X - SI Bundle Net Work Switch 4 x 10 Gig SFP+

Description
Model: S5720-28X-SI Name: Huawei S5720-28X-SI Bundle
Detail: Huawei S5720-28X-SI Bundle(24 Ethernet 10/100/1000 Ports,4 Of Which Are Dual-purpose 10/100/1000 Or SFP Switching Capacity: 336 Gbit/s
Forwarding Performance: 96 Mpps Uplink Interfaces: 4 X 10 Gig SFP+
Memory: 512 MB MOQ: 1 PC
High Light:

28X Network Ethernet Switch

,

Huawei S5720 Optical Ethernet Switch

,

Network 10gb Ethernet Switch

Huawei S5720 - 28X - SI Bundle net work switch in stock for seal

Huawei S5720-28X-SI delivers high performance of switching capacity and powerful layer 3 routing capabilities, such as OSFP/OSPFv3, BGP/BGP4+, ISIS/ISISv6, and provides voice, video and data services, helping enterprises build an integrated full service network with high availability and low latency. The S5720-28X-SI builds with 24 Gigabit Ethernet ports and 4 SFP+ 10G uplinks and it can be used as access or aggregation switches on campus networks or access switches in data centers. The S5720-28X-SI supports intelligent stacking (iStack). Multiple S5720-SI can be connected with stack cables to set up a stack, which functions as a virtual switch. A stack consists of a master switch, a backup switch, and several slave switches. The backup switch takes over services when the master switch fails, reducing service interruption time. Stacks support intelligent upgrade so that users do not need to change the software version of a switch when adding it to a stack. The iStack function allows users to connect multiple switches with stack cables to expand system capacity.



S5720-28X-SI-AC Specifications

Switching Capacity 336 Gbit/s
Forwarding Performance 42 Mpps/57 Mpps/78 Mpps/96 Mpps/132 Mpps
Fixed Ports

24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP

P series: 4 Gig SFP

X series: 4 x 10 Gig SFP+

MAC Address Table 16K
Ring Protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS (G.8032)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

IP Routing Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, IS-IS, IS-ISv6, VRRP, and VRRP6
Multicast

PIM-DM, PIM-SM, and PIM-SSM

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

MAC Forced Forwarding (MFF)

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

802.1x authentication, MAC address authentication, and combined authentication on a per port basis

Portal authentication on a per VLANIF interface basis

MACSec (hardware ready)

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration

Automatically loading the system software package and client patches

One-click and automatic delivery of service configurations

Supports independent running client

Management and Maintenance

iStack

Virtual cable test

SNMP v1/v2c/v3

RMON

Web-based NMS

System logs and alarms of different levels

sFlow

Interoperability

VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)

Link-type Negotiation Protocol (LNP) (similar to DTP)

VLAN Central Management Protocol (VCMP) (similar to VTP)
