Product Details:
|
| Name: | S5736-S24UM4XC - Huawei CloudEngine S5736-S Series Multi-GE Switches | Detail: | Huawei CloudEngine S5736-S Series Multi-GE Switches S5736-S24UM4XC - 24 X 100M/1G/2.5G/5G/10G Base-T Ethernet Ports, 4 X 10 GE SFP+ |
|---|---|---|---|
| Model: | S5736-S24UM4XC | Interoperability: | VBST (compatible With PVST/PVST+/RPVST) LNP (similar To DTP) |
| IP Routing: | Static Route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, And VRRP6 | VLAN Features: | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN Assignment Based On MAC Addresses, Protocols, IP Subnets, Policies, And Ports 1:1 And N:1 VLAN Mapping |
| Extended Slots: | One Extended Slot, Supporting 2 X 25 GE SFP28 Or 8 X 10 GE SFP+, 4 X 40 GE QSFP+ Cards | PoE++ (90 W): | Supported, Up To 90 W PoE++ Per Port |
| Switching Capacity: | 880 Gbit/s/2.72 Tbit/s | Forwarding Performance: | 480 Mpps |
| High Light: | CloudEngine Huawei S Series Switches,Multi GE Huawei Layer 3 Switch,S5736 - S24UM4XC Optical Ethernet Switch |
||

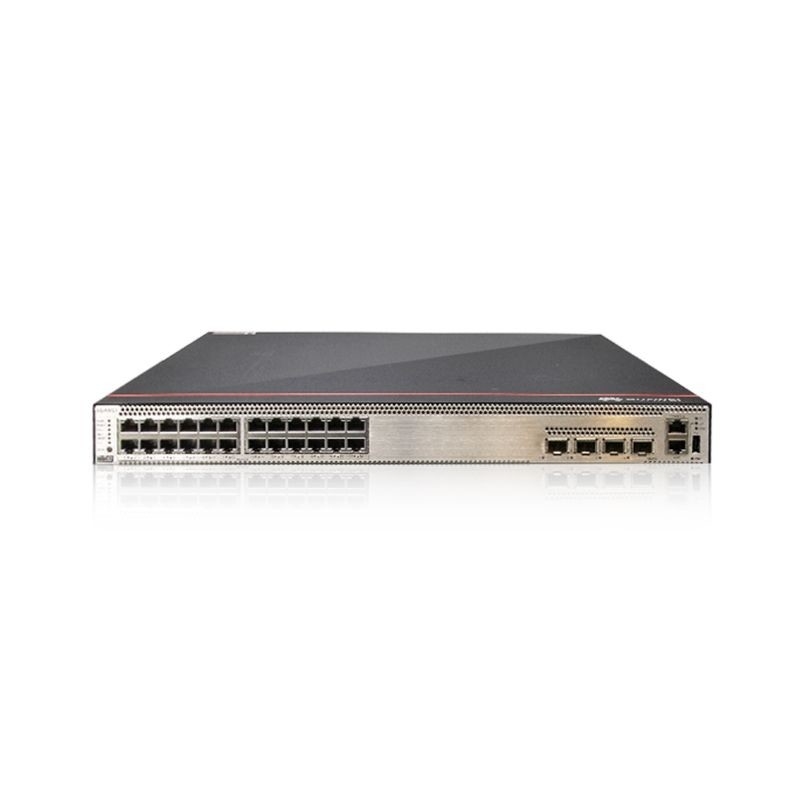

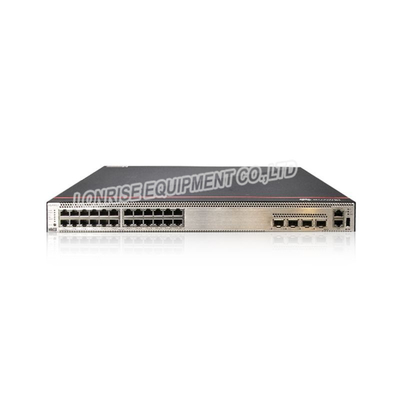

S5736 - S24UM4XC Huawei CloudEngine S5736 - S Series Multi - GE Switches
Huawei CloudEngine S5736-S Series Multi-GE Switches S5736-S24UM4XC - 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+
| Model | CloudEngine S5736-S24UM4XC |
| Forwarding Performance | 480 mpps |
| Switching Capacity | 880 Gbit/s/2.72 Tbit/s |
| Fixed Ports | 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+ |
| PoE++ (90 W) | Supported, up to 90 W PoE++ per port |
| Extended Slots | One extended slot, supporting 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 4 x 40 GE QSFP+ cards |
| MAC Address Table | 32,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN Features | 4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
