Product Details:
|
| Product Name: | Huawei CE5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,2*FAN Box,Port-side Exhaust,Without Power Module) | Model: | CE5855-48T4S2Q-F |
|---|---|---|---|
| Software Version: | V100R005C10 And Later | Base-T Ports: | 48 |
| SFP+ Ports: | 4 | QSFP+ Ports: | 2 |
| Switching Capacity: | 336 Gbit/s | Forwarding Rate: | 252 Mpps |
| Maximum Power Consumption: | 103W | ||
| High Light: | Huawei EI Switch,48 Port Huawei EI Switch,GE RJ45 Huawei Network Switches |
||

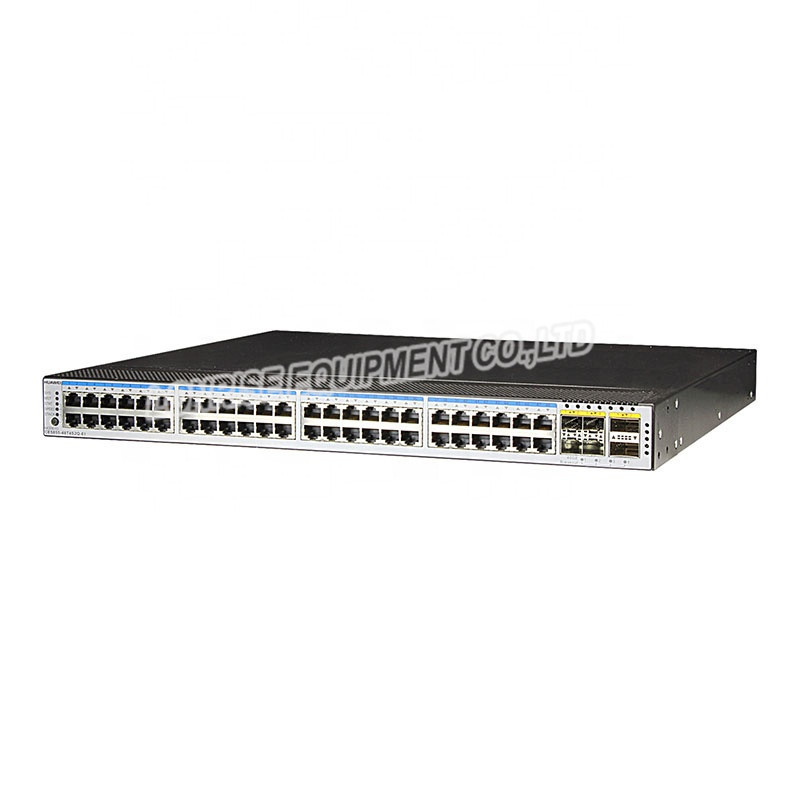

| Huawei CE5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,2*FAN Box,Port-side Exhaust,Without Power Module) |
Huawei CE5855-48T4S2Q-EI provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.
|
Product Code |
CE5855-48T4S2Q-EI-F |
|
Software Version |
V100R005C10 and later |
|
Fixed GE interfaces |
48*10/100/1000BASE-T |
|
Fixed 10GE interfaces |
4*10GE SFP+ |
|
Fixed 40GE interfaces |
2*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces. |
|
Fixed 100GE interfaces |
None |
|
Base-T Ports |
48 |
|
SFP+ Ports |
4 |
|
QSFP+ Ports |
2 |
|
Switching Capacity |
336 Gbit/s |
|
Forwarding Rate |
252 Mpps |
|
Power module type |
Pluggable AC or DC power module, 1+1 backup supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum power consumption |
103W |
|
Airflow |
Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8.4 kg (18.5 lb) |

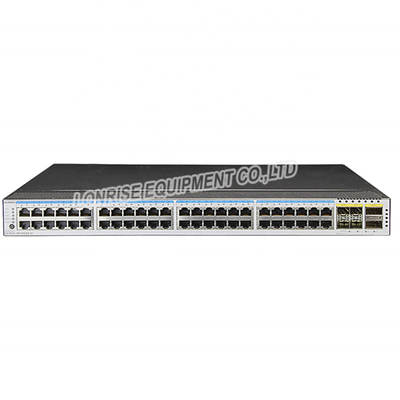

Note:
| ① | Forty-eight 10/100/1000BASE-T Ethernet electrical ports |
| ② | Four 10GE SFP+ Ethernet optical ports |
| ③ | Two 40GE QSFP+ Ethernet optical ports |
CE5855-48T4S2Q-EI-F front view (power supply side).
Note:
| ① | Power supply slot 1 |
| ② | Fan slot 1 |
| ③ | Console port |
| ④ | Barcode label |
| ⑤ | Fan slot 2 |
| ⑥ | Power supply slot 2 |
| ⑦ | USB port |
| ⑧ | ETH management port (RJ45) |
CE5855-48T4S2Q-EI-F.
| Model | Description |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ Optical Transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
| GE Copper Transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| FAN-40SB | |
| FAN-40SB-F | Fan box(SB,Front to Back,FAN panel side intake) |
| FAN-40SB-B | Fan box(SB,Back to Front,FAN panel side exhaust) |
the comparison of CE5855-48T4S2Q-EI-F, CE5850-HI-B-B00 and CE5855-24T4S2Q-EI-B.
| Product Code | CE5855-48T4S2Q-EI-F | CE5850-HI-B-B00 | CE5855-24T4S2Q-EI-B |
| Software Version | V100R005C10 and later | V100R003C00 and later | V100R005C10 and later |
| Fixed GE interfaces | 48*10/100/1000BASE-T | 48*10/100/1000BASE-T | 24*10/100/1000BASE-T |
| Fixed 10GE interfaces | 4*10GE SFP+ | 4*10GE SFP+ | 4*10GE SFP+ |
| Fixed 40GE interfaces |
2*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces. |
2*40GE QSFP+ |
2*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces. |
| Fixed 100GE interfaces | None | None | None |
| Base-T Ports | 48 | 48 | 24 |
| SFP+ Ports | 4 | 4 | 4 |
| QSFP+ Ports | 2 | 2 | 2 |
| Switching Capacity | 336 Gbit/s | 336 Gbit/s | 288 Gbit/s |
| Forwarding Rate | 252 Mpps | 252 Mpps | 215 Mpps |
| Maximum power consumption | 103W | 131W | 75W |
CE5855-48T4S2Q-EI-F Specification |
|
| Base-T Ports | 48 |
| SFP+ Ports | 4 |
| QSFP+ Ports | 2 |
| Switching Capacity | 336 Gbit/s |
| Forwarding Rates | 252 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| TRILL (CE5855 & CE5850) | |
| VM Awareness | Agile Controller |
| SDN | Open Programmability System (OPS) |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | ingress: 9k egress: 2k |
| MAC Address Table | maximum: 64k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and black hole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 54k |
| IPv4 FIB (maximum) | 32k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (not supported by CE5855) | |
| IPv6 FIB (maximum) | - |
| IPv6 | IPv6 Neighbor Discovery (ND) (not supported by CE5855) |
| Path MTU Discovery (PMTU) (not supported by CE5855) | |
| TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | |
| Multicast FIB (maximum) | 2k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| IGMP snooping | |
| IGMP proxy | |
| Fast leave of multicast member interfaces | |
| Multicast traffic suppression | |
| Multicast VLAN | |
| Reliability | LACP |
| STP, RSTP, VBST, MSTP | |
| BPDU protection, root protection, and loop protection | |
| Smart Link and multi-instance | |
| DLDP | |
| ERPS (G.8032) | |
| VRRP, VRRP load balancing, and BFD for VRRP | |
| BFD for BGP/IS-IS/OSPF/Static route | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-marking, and scheduling | |
| Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR | |
| Congestion avoidance mechanisms, including WRED and tail drop | |
| Traffic shaping | |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Network management protocols, such as SNMPv1/v2c/v3 | |
| File upload and download through FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| 802.3az Energy Efficient Ethernet (EEE) | |
| Hot patches | |
| User operation logs | |
| Zero-Touch Provisioning (ZTP) | |
| Security and Management | 802.1x authentication |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| DoS, ARP, and ICMP attack defenses | |
| Port isolation, port security, and sticky MAC | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Authentication methods, including AAA, RADIUS, and HWTACACS | |
| Remote Network Monitoring (RMON) | |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.4 kg (18.5 lb) |
| Environmental Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Relative humidity: 5% to 95%, non-condensing | |
| Operating Voltage | AC: 90V to 264V |
| DC: -38.4V to -72V | |
| Maximum Power Consumption | 103W |
