Product Details:
|
| Brand: | Huawei | Model: | AR1220F-S |
|---|---|---|---|
| Memory / Flash: | All 512 MB | Fixed WAN / LAN Ports: | 2 X GE / 8 X FE |
| WAN Speed With Services: | 400 Mbit/s | Condition: | New With 1Year Warranty |
| High Light: | cisco network router,cisco modular router |
||

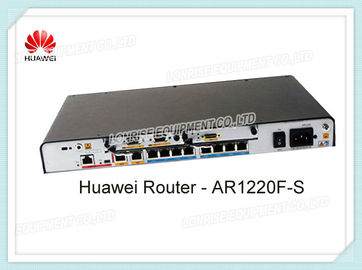

AR1220F-S Huawei Next Generation AR1200 Series Router AR1220F-S
Huawei AR G3 AR1220 Series router AR1220F-S is targeted for small enterprise or remote office environment and integrates 1 GE 10/100/1000 WAN, 1 GE COMBO (Rj-45 or SFP),8 Fast Ethernet 10/100 LAN ports,2 USB,2 SIC, wireless controller and up to 400Mbps system bandwidth.
AR1220F-S Specification |
|
| WAN speed with services*** | 400 Mbit/s |
| Firewall Performance (large packet) | 1,800 Mbit/s |
| Device Switching Capacity | 8 Gbit/s |
| Slot Switching Bandwidth | SIC & WSIC slots 2 Gbit/s |
| Number of Recommended Users | 100 |
| Fixed WAN Ports | 2 x GE (1 x Combo) |
| Fixed LAN Ports | 8 x FE (can be configured as WAN interfaces) |
| SIC Slots | 2 |
| WSIC Slots (default/max) | 0/1 |
| DSP Slots | - |
| Wi-Fi | - |
| USB 2.0 Ports | 2 |
| Mini-USB Ports | 1 |
| Serial Auxiliary/Console Port | 1 |
| Memory | 512 MB |
| Flash | 512 MB |
| Max. Power | 60W |
| PoE Power | - |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | - |
| Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
| Weight | 2.9 kg (without interface cards) |
| Ambient Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non-condensing) |
shows the recommended elements for the AR1220F-S.
| Model | Description |
| FE-SFP Optical Transceiver | |
| SFP-FE-SX-MM1310 | SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
| eSFP-FE-LX-SM1310 | eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
| S-SFP-FE-LH40-SM1310 | eSFP,FE,Single-mode Module(1310nm,40km,LC) |
| GE-SFP Optical Transceiver | |
| SFP-1000BaseT | SFP,GE,Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| WAN interface card | |
| AR-1E3T3M-W | 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
| xDSL interface card | |
| AR01SLV1XA | 1-Port VDSL2 over POTS WAN Interface Module |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
