Product Details:
|
| Brand: | Huawei | Model: | S6720-30L-HI-24S |
|---|---|---|---|
| Fixed Ports: | 24 X 10GE, 4 X 40GE, 2 X 100GE | Console Port: | RJ45 |
| Memory (RAM): | 2GB | Power Supply: | Double Hot-swappable AC/DC Power Supplies |
| High Light: | huawei ethernet switches,huawei industrial switches |
||

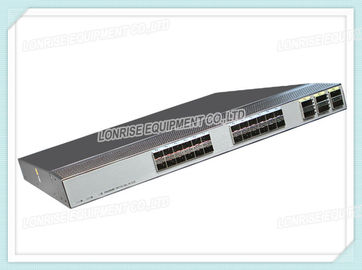

S6720-30L-HI-24S-DC Huawei Network Switch 24x10 Gig SFP+, 4x40 Gig QSFP+, 2x100 Gig QSFP28
S6720-HI series full-featured 10 GE routing switches are Huawei’s first IDN-ready fixed switches to provide 10 GE downlink ports as well as 40 GE and 100 GE uplink ports.
S6720-HI series switches provide native AC capabilities and can manage 1K APs. They provide a free mobility function to ensure consistent user experience and are Virtual Extensible LAN(VXLAN )capable to implement network virtualization.
S6720-HI series switches also provide built-in security probes and support abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. The S6720-HI is ideal for enterprise campuses, carriers, higher education institutions, and governments.
Specification
|
Item |
Description |
|---|---|
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. |
| Mean time between failures (MTBF) | 61.42 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection |
|
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight (with packaging) | 9.9 kg (21.83 lb) |
| Stack ports |
|
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 232 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 138 W |
| Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 02351MXR |
| 1 | Twenty-four 10GE SFP+ ports
|
2 | Two 100GE/40GE QSFP28 ports
|
| 3 | Four 40GE QSFP+ ports | 4 | Power module slot 1
|
| 5 | Fan slot 1
|
6 | One console port |
| 7 | One ETH management port | 8 | ESN label |
| 9 | One USB port | 10 | Fan slot 2
|
| 11 | Power module slot 2
|
12 | Ground screw |
