Product Details:
|
| Description: | Cisco Catalyst 9120AXE Series, H Domain | Product Status: | Stock |
|---|---|---|---|
| Downlink: | 4 X GE | Wireless Type: | 802.11a/g/n/ac |
| Highest Rate: | 300 Mbit/s | Condition: | Orginal |
| Wireless Standard: | 802.11ac | Wireless Frequency: | 2.4GHz/5GHz |
| Power Supply: | 802.3af PoE, Local Power Supply | Power Over Ethernet: | 802.3at PoE+ |
| Type: | Enterprise Wireless Access Point | Weight: | 2.1 Lbs |
| Antenna: | Internal Antenna | Memory: | 256 MB DDR3L 64 MB Flash |
| Operating Temperature: | 32°F To 104°F (0°C To 40°C) | ||
| Highlight: | C9130AXI E Cisco Catalyst,5GHz C9130AXI E Cisco Catalyst |
||

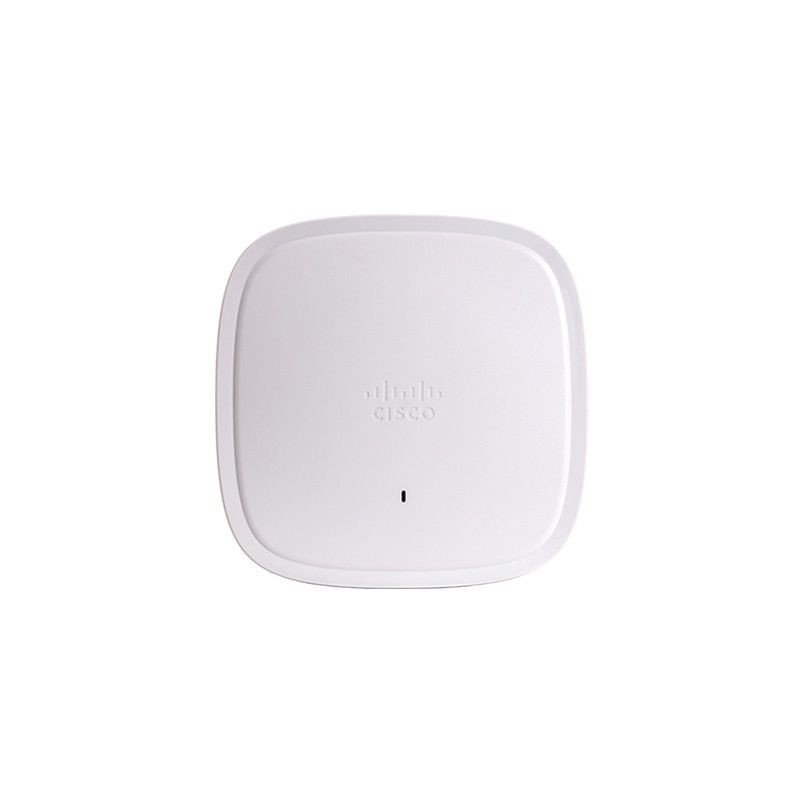

The Cisco® Catalyst® 9130AX Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9130AXI-E is the Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain.
Cisco AP C9130AX Series provides these features:
• Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands
• Up to four Wi-Fi radios: 5GHz flexible radio (single 8x8 or dual 4x4), 2.4GHz (4x4) and Cisco RF ASIC
• OFDMA and MU-MIMO
• Multigigabit support
• Internal and external antenna
Future feature support:
• IoT ready (BLE, other 802.15.4 protocols** like Zigbee)
** - Supported in future software releases
Table 1 shows the supported platforms and software.
| Supported wireless LAN controllers and Software | Recommended Model |
| Cisco 3500 Series Wireless Controllers | AIR-CT3504-K9 |
| Cisco 5520 Series Wireless Controllers | AIR-CT5520-K9 |
| Cisco 8540 Series Wireless Controllers | |
| Cisco 9800 series Wireless Controllers | |
| Cisco Virtual Wireless Controller | / |
| Cisco Unified Wireless Network Software Release 8.9 or later | / |
| Cisco IOS ® XE Software Release 16.11 or later | / |
Table 2 shows the comparison of Cisco AP 9130AXI Series.
| SKU | Description |
| C9130AXI-A | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain |
| C9130AXI-B | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain |
| C9130AXI-D | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, D Domain |
| C9130AXI-E | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain |
| C9130AXI-F | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, F Domain |
| C9130AXI-G | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, G Domain |
| C9130AXI-H | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain |
| C9130AXI-I | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, I Domain |
| C9130AXI-K | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, K Domain |
| C9130AXI-Q | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Q Domain |
| C9130AXI-R | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, R Domain |
| C9130AXI-S | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain |
| C9130AXI-T | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, T Domain |
| C9130AXI-Z | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Z Domain |
