Product Details:
|
| Model: | C1111-8P | Frequency: | 50-60 Hz |
|---|---|---|---|
| Input Voltage: | Universal 100 To 240 VAC | Input Current: | PoE Not Enabled: 0.82A Maximum PoE Enabled: 1.55A Maximum |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Dimensions: | 1.75 X 12.7 X 9.03 In. (includes Rubber Feet) | Weight With AC PS (w/o Modules): | 5.5 Lbs. (2.5 Kg) Maximum |
| Lead Time: | 2-3 Days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS | Shipping Time: | 5-7 Days |
| Highlight: | C1111-8P Integrated Services Routers,WAN Ethernet Router 8 Ports,WAN Ethernet Integrated Services Routers |
||

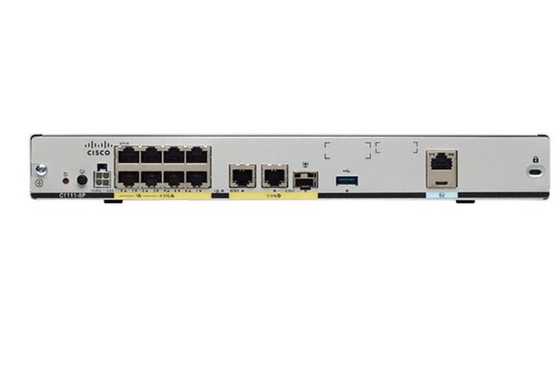

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8P is the ISR 1100 8 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.
| Model | C1111-8P | C1111-4P |
| WAN GE | 1 | 1 |
| WAN GE/SFP combo | 1 | 1 |
| ADSL2/VDSL2+ | N/A | N/A |
| LTE Advanced (CAT6) | N/A | N/A |
| 802.11ac | N/A | N/A |
| LAN GE | 8 | 4 |
| PoE | 4 | 2 |
| PoE+ | 2 | 1 |
| Integrated USB 3.0 AUX/console | Yes | Yes |
C1111-8P Specification |
|
| Description | ISR 1100 8 Ports Dual GE WAN Ethernet Router |
| Physical Properties | |
| Dimensions (H x W x D) |
Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
| Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
| AC Input Power | |
| Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input current |
PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
| Ports | |
| Micro USB Port | One RJ-45: Separate console port |
| USB port |
USB 3.0 Type A host port USB devices supported: USB flash memory |
| Console port | One USB 5-pin micro Type B: Console management connectivity |
| 10/100/1000 Gigabit Ethernet |
Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2x2 .11ac Wave 2 |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |
| Inline PoE |
4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+ |
| Acoustic for Cisco 1100 Series ISRs | Not Applicable - Fanless design |
| Approvals and compliance |
Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
| Environmental | |
| Operating humidity | 5 to 85% relative humidity |
| Operating temperature |
32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
| Altitude in China | 0-6560 ft (0-2000 m) |
| Altitude in all other countries | 0-10,000 ft (0-3050 m) |
| Transportation and Storage | |
| Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
| Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
| Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
