Product Details:
|
| Condition: | NIB And Used | Branch: | Cisco |
|---|---|---|---|
| Type: | Router | PN: | C1111-8P |
| Details: | Cisco Router | Application: | Routers |
| Highlight: | cisco router switch module,cisco network module |
||

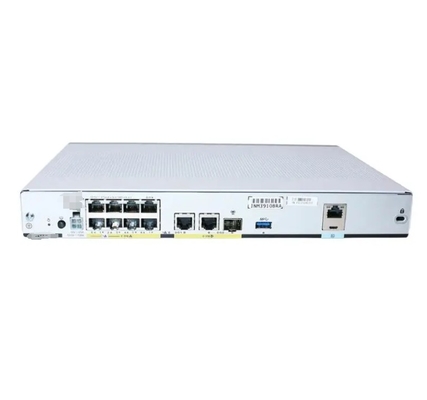

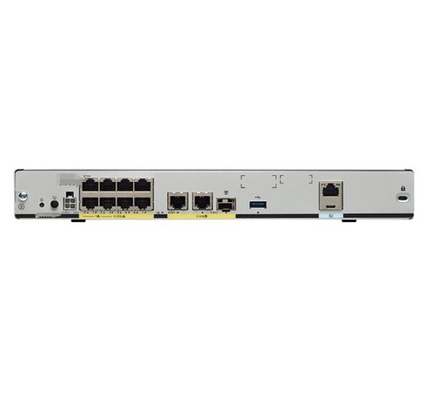

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8P is the ISR 1100 8 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.
| C1111-8P Specification | |||||||||
| Description | |||||||||
| ISR 1100 8 Ports Dual GE WAN Ethernet Router | |||||||||
| Physical Properties | |||||||||
| Dimensions (H x W x D) | |||||||||
| Non-LTE models: | |||||||||
| H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) | |||||||||
| Weight with AC PS (w/o modules) | |||||||||
| 5.5 Lbs. (2.5 kg) maximum | |||||||||
| AC Input Power | |||||||||
| Input voltage | |||||||||
| Universal 100 to 240 VAC | |||||||||
| Frequency | |||||||||
| 50-60 Hz | |||||||||
| Input current | |||||||||
| PoE not enabled: 0.82A maximum | |||||||||
| PoE enabled: 1.55A Maximum | |||||||||
| Surge current | |||||||||
| 90 A peak and less than 8 Arms per half cycle | |||||||||
| Ports | |||||||||
| Micro USB Port | |||||||||
| One RJ-45: Separate console port | |||||||||
| USB port | |||||||||
| USB 3.0 Type A host port | |||||||||
| USB devices supported: | |||||||||
| USB flash memory | |||||||||
| Console port | |||||||||
| One USB 5-pin micro Type B: Console management connectivity | |||||||||
| 10/100/1000 Gigabit Ethernet | |||||||||
| Two GE ports allocated among RJ45 and SFP as: | |||||||||
| One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) | |||||||||
| One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) | |||||||||
| Wireless VLANs | |||||||||
| 32 (encrypted and non-encrypted VLANs) | |||||||||
| Wireless specifications | |||||||||
| 2x2 .11ac Wave 2 | |||||||||
| Default and maximum DRAM | |||||||||
| 4GB | |||||||||
| Default and maximum flash | |||||||||
| 4GB | |||||||||
| Inline PoE | |||||||||
| 4 ports for -8P PIDs, 2 ports for -4P PIDs | |||||||||
| 802.3af-compliant PoE or 802.3at-compliant PoE+ | |||||||||
| Acoustic for Cisco 1100 Series ISRs | |||||||||
| Not Applicable - Fanless design | |||||||||
| Approvals and compliance | |||||||||
| Emission | |||||||||
| 47 CFR Part 15 | |||||||||
| CISPR 32 Edition 2 | |||||||||
| EN 300 386 V1.6.1 | |||||||||
| EN 55032:2012/ AC:2013 | |||||||||
| EN 55032:2015 | |||||||||
| EN61000-3-2 2014 | |||||||||
| EN61000-3-3: 2013 | |||||||||
| ICES-003 ISSUE 6:2016 | |||||||||
| KN 32: 2015 | |||||||||
| V-2/2015.04 | |||||||||
| V-3/2015.04 | |||||||||
| TCVN 7189: 2009 | |||||||||
| CNS13438: 2006 | |||||||||
| IEC 60950-1 | |||||||||
| EN 60950-1 | |||||||||
| UL 60950-1 | |||||||||
| CSA C22.2 No. 60950-1 | |||||||||
| Immunity | |||||||||
| CISPR24: 2010 + A1: 2015 | |||||||||
| EN 300 386 V1.6.1 | |||||||||
| EN55024: 2010 + A1: 2015 | |||||||||
| KN35: 2015 | |||||||||
| TCVN 7317: 2003 | |||||||||
| Environmental | |||||||||
| Operating humidity | |||||||||
| 5 to 85% relative humidity | |||||||||
| Operating temperature | |||||||||
| 32 to 104°F (0 to 40°C) Sea Level; | |||||||||
| 32 to 77°F (0°C to 25°C) at 10,000 ft | |||||||||
| 1.5°C derating per 1000 ft | |||||||||
| Altitude in China | |||||||||
| 0-6560 ft (0-2000 m) | |||||||||
| Altitude in all other countries | |||||||||
| 0-10,000 ft (0-3050 m) | |||||||||
| Transportation and Storage | |||||||||
| Nonoperating temperature | |||||||||
| -40 to 158°F (-40 to 70°C) | |||||||||
| Nonoperating humidity | |||||||||
| 5 to 95% relative humidity (noncondensing) | |||||||||
| Nonoperating altitude | |||||||||
| 0 to 15,000 ft (0 to 4570m) |
