Product Details:
|
| Model: | CE16808-DC | Cabinet Installation Standards: | A812 |
|---|---|---|---|
| Chassis Height [U]: | 15.8 U | Power Supply Mode: | DC |
| Dimensions Without Packaging: | 27.67 In. X 19.02 In. X 38.78 In. | Weight Without Packaging: | 299.44 Lb |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | CE16808 Ethernet Switch,In Stock CE16808 Ethernet Switch,CE16804-DC Ethernet Switch |
||

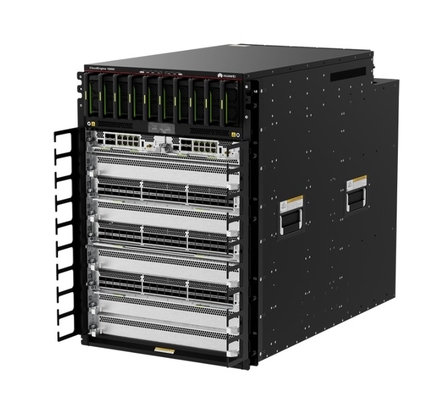

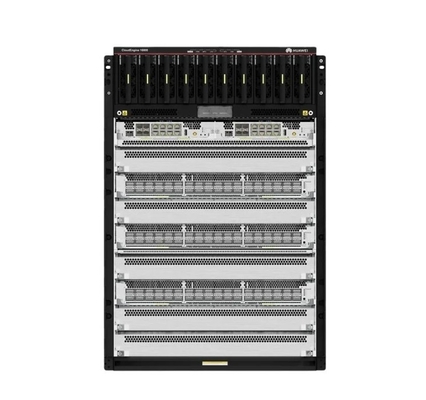

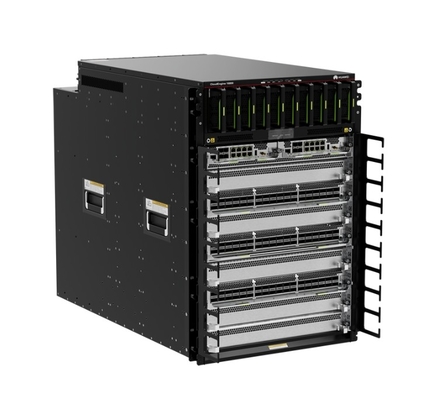

Huwei CloudEngine 16800: Industry's First Data Center Switch, Built for the AI Era
1. The CloudEngine 16800 supports up to 36 x 100GE, 36 x 40GE, or 144 x 10GE line cards, which provide line-rate forwarding.The CloudEngine 16808 provides up to 288 x 100GE, 288 x 40GE, or 1152 x 10GE line-rate ports.Support 400GE ports in the future
2. Intelligent engine: embedded AI chip, implementing intelligent optimization of network-wide traffic and pre-analysis of network-wide abnormal traffic
3. Numerous features: M-LAG, VXLAN, EVPN, NSH, Telemetry, and iLossless AI algorithm
Technical specifications of the CE16808-DC
| Item | Specification |
|---|---|
| Dimensions with packaging (H x W x D) [mm (in.)] | 990 mm x 770 mm x 1150 mm (39.89 in. x 30.31 in. x 45.28 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | 703 mm x 483 mm x 985 mm (27.67 in. x 19.02 in. x 38.78 in.) (including mounting brackets) |
| Weight without packaging [kg (lb)] | 135.8 kg (299.44 lb) (including two MPUs and filler panels) |
| Weight without packaging (full configuration) [kg (lb)] | 255.1 kg (562.50 lb) |
| Weight with packaging [kg (lb)] | 183 kg (403.52 lb) |
| Cabinet installation standards | A812 |
| Chassis height [U] | 15.8 U |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | N+M |
| Power supply mode | DC |
| Number of power modules | 10 |
| Redundant power supply |
Dual-input power supply is recommended to ensure reliability. |
| Rated input voltage [V] | -48 V/-60 V |
| Input voltage range [V] | -40 V to -72 V |
| Maximum input current [A] | 58.5 A for the voltage of -40 V |
| Maximum output power [W] |
|
| Certification |
|
| Redundant fans | Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Heat dissipation using fans |

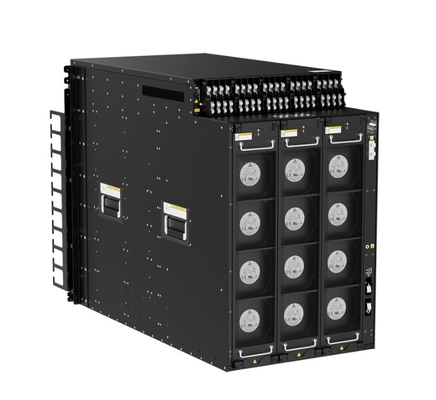

| Airflow direction | Front-to-back airflow |
| Availability | 0.9999971582 |
| MTBF [year] | 34.55 year |
| MTTR [hour] | 1 hour |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) (When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
