Product Details:
|
| Model: | C9300-24UX-E | Ports: | 24 Multigigabit Cisco UPOE (100 Mbps Or 1, 2.5, 5, Or 10 Gbps) |
|---|---|---|---|
| Switching Capacity: | 640 Gbps On 24-port Gigabit Ethernet Model | Stacking Bandwidth: | 480 Gbps |
| DRAM: | 8 GB | Flash: | 16 GB |
| Dimensions: | 1.73 X 17.5 X 17.5 Inches | Weight: | 16.33 Pounds |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |

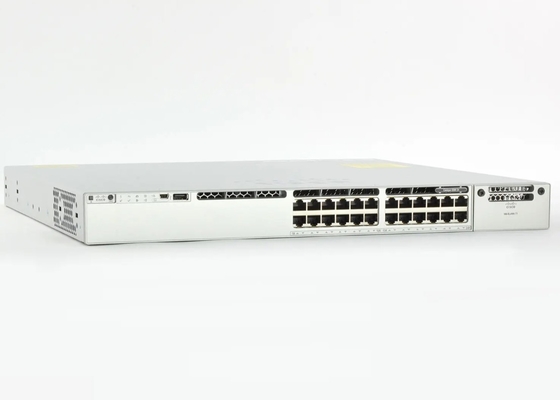

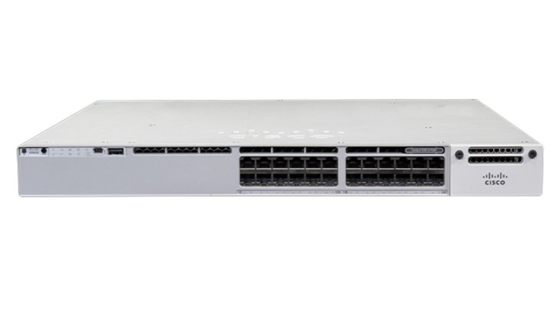

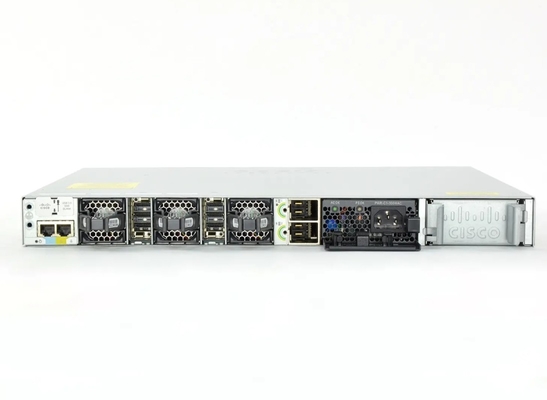

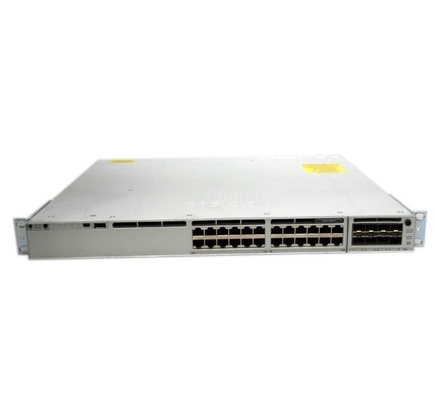

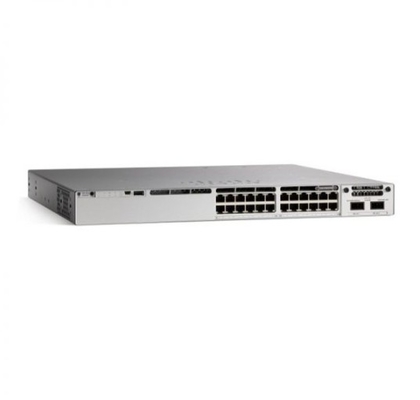

The Catalyst 9300 24-port mGig and UPOE, Network Essentials, known as C9300-24UX-E, is an excellent choice for enterprises that require a high-performing, secure, and reliable network infrastructure. It offers both multigigabit Ethernet and UPOE capabilities, providing flexibility and power for demanding network environments.
| Model | Difference |
| C9300-24U-E | 24-port UPOE, Network Essentials |
| C9300-48UXM-E | 48-port mGig and UPOE, Network Essentials |
| C9300-24T-E | 24-port data only, Network Essentials |
C9300-24UX-E Specification |
|
| Part Number | C9300-24UX-E |
| Product Description | Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports | 24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps) |
| Default AC power supply | 1100W AC |
| Available PoE power | 490W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-1100WAC-P/2 |
| Switching capacity | 640 Gbps on 24-port Multigigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 32 MB buffer for 24-port Multigigabit |
| FNF entries | 128,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
| Safety certifications |
● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| Electromagnetic emissions certifications |
● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
