Product Details:
|
| Model: | C9200L-24T-4X-E | Uplink Configuration: | 4x 10G Fixed Uplinks |
|---|---|---|---|
| Stacking Bandwidth: | 80 Gbps | DRAM: | 2 GB |
| Flash: | 4 GB | Switching Capacity: | 128 Gbps |
| Forwarding Rate: | 190.4 Mpps | Dimensions: | 1.73 X 17.5 X 11.3 In |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipping: | DHL, Fedex, UPS |
| High Light: | Catalyst 9200L Ethernet Switch,C9200L-24T-4X-E |
||

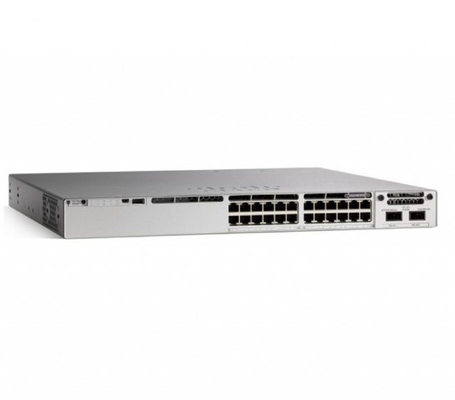

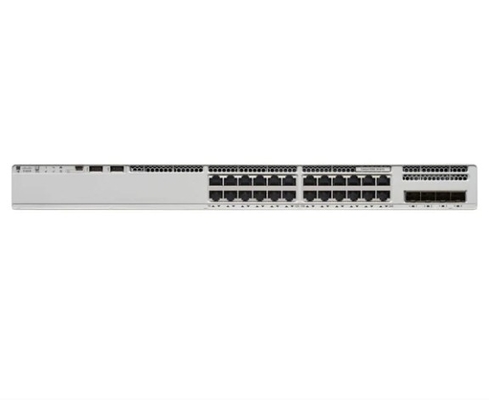

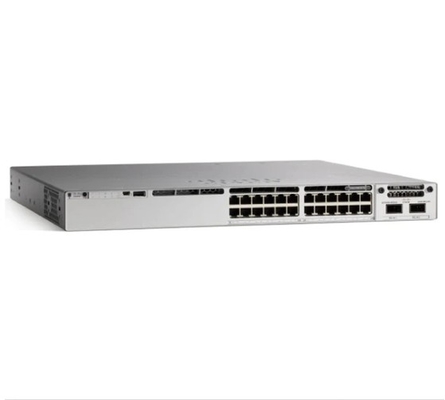

C9200L-24T-4X-E is the Catalyst 9200L 24-port Data 4x10G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |

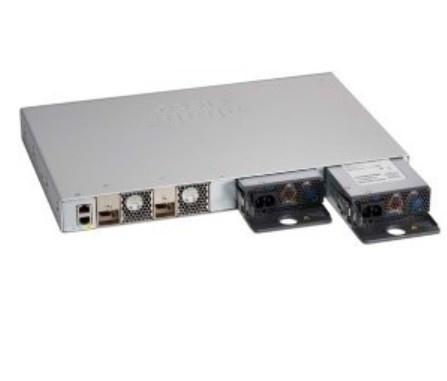

| Power supplies | |
| Product Number | Product Description |
| PWR-C5-125WAC/2= | 125WAC power supply spare |
| Product number | Product description |
| C9200L-24T-4X-A | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage |
| C9200L-24T-4X-E | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials |
| C9200L-24P-4X-A | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage |
| C9200L-24P-4X-E | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials |
C9200L-24T-4X-E Specification |
|
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports data |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Mean time between failures (hours) | 525,990 |
