SRX340-SYS-JB Specification |
|

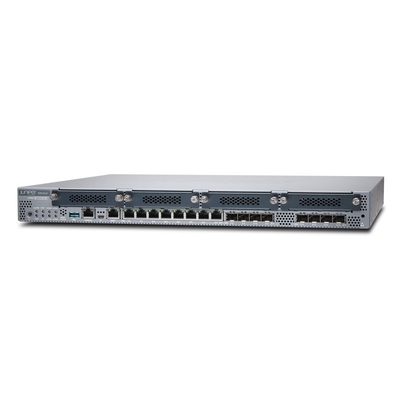

| Description | SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 3 Gbps |
| IPS performance | 250 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 500 Mbps |
| Maximum concurrent sessions | 256,000 |
| New sessions/second (sustained, TCP, 3-way) | 10,000 |
| Maximum security policies | 2000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 0 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 1 |
| Form factor | 1U |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) |
| Redundant PSU | No |
| Power supply | AC (internal) |
| Maximum PoE power | N/A |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Operational temperature | 32° to 104° F (0° to 40° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
