SRX345-SYS-JE Specification |
|

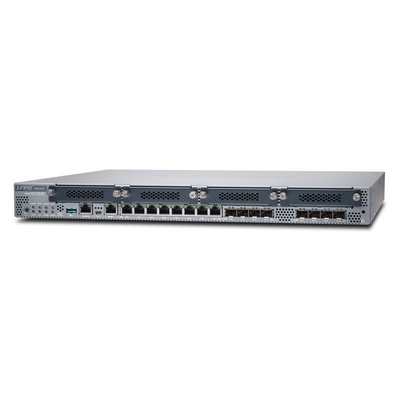

| Description | SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 5 Gbps |
| IPS performance | 500 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 800 Mbps |
| Maximum concurrent sessions | 375,000 |
| New sessions/second (sustained, TCP, 3-way) | 20,000 |
| Maximum security policies | 4000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 0 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 1 |
| Form factor | 1U |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm) |
| Redundant PSU | Yes |
| Power supply | AC (internal) / DC (internal) |
| Maximum PoE power | N/A |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A / 6A @ -48 VDC12 |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Operational temperature | -22° to 131° F (-30° to 55° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
