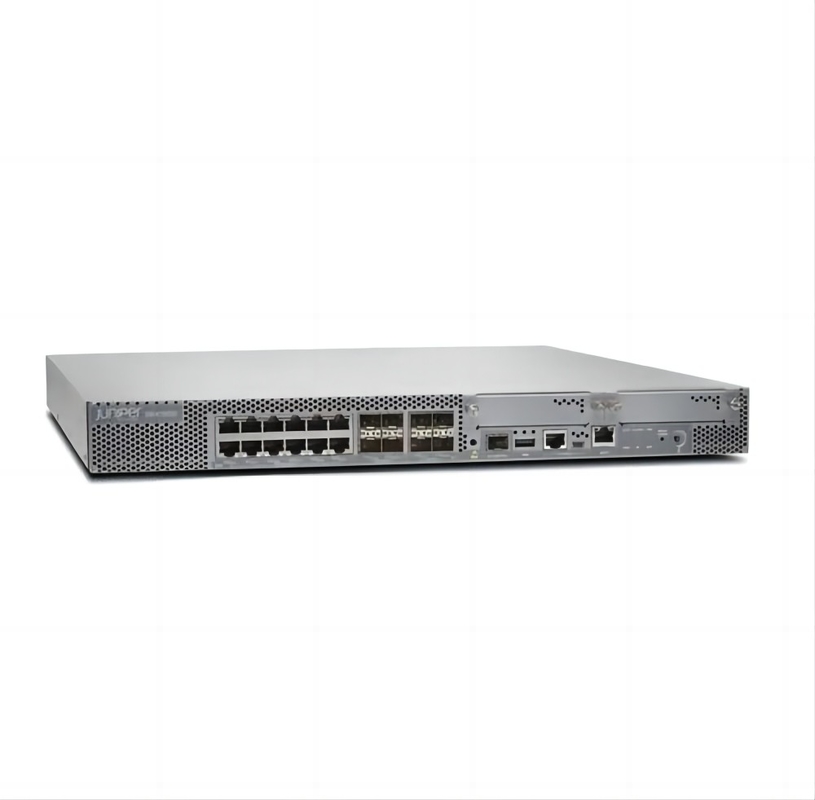

SRX1500-SYS-JB-AC Specification |
|
| Connectivity | |
| Total onboard ports | 16x1GbE and 4x10GbE |
| Onboard RJ-45 ports | 12x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
| Onboard SFP+ ports | 4x10GbE |
| Out-of-Band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 1x1GbE (SFP) |
| PIM slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 2.0 ports (type A) | 1 |
| Memory and Storage | |
| System memory (RAM) | 16 GB |
| Primary boot storage (mSATA) | 16 GB |
| Secondary storage (SSD) | 100 GB |
| Dimensions and Power | |
| Form factor | 1 U |
| Size (WxHxD) | 17.5 x 1.75 x 18.2 in (44.45 x 4.44 x 46.22 cm) |
| Weight (device and PSU) | 15.31 kg |
| Redundant PSU | 1+1 |
| Power supply | AC/DC (external) |
| Average power consumption | 150 W |
| Average heat dissipation | 512 BTU / hour |
| Maximum current consumption | 2.5A (for AC PSU); 6.2A (for DC PSU) |
| Maximum inrush current | 50A by 1 AC cycle |
| Acoustic noise level | 66.5dBA |
| Airflow/cooling | Front to back |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Nonoperating temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
| Meantime between failures (MTBF) | 9.78 years (85,787 hours) |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 19.2) |
| Performance and Scale | |
| Routing/firewall (IMIX packet size) Gbps2 | 5 |
| Routing/firewall (1,518 B packet size) Gbps2 | 9 |
| IPsec VPN (IMIX packet size) Gbps2 | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps2 | 4.5 |
| Application visibility and control in Gbps3 | 7 |
| Recommended IPS in Gbps3 | 4 |
| Next-generation firewall in Gbps3 | 1.7 |
| Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
| Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
| Maximum security policies | 16,000 |
| Connections per second | 90,000 |
| NAT rules | 8,000 |
| Media access control (MAC) table size | 64,000 (standalone mode) |
| IPsec VPN tunnels | 2,000 |
| Number of remote access/SSL VPN (concurrent) users | 2,000 |
| GRE tunnels | 2,048 |
| Maximum security zones | 512 |
| Maximum virtual router | 512 |
| Maximum VLANs | 3,900 |
