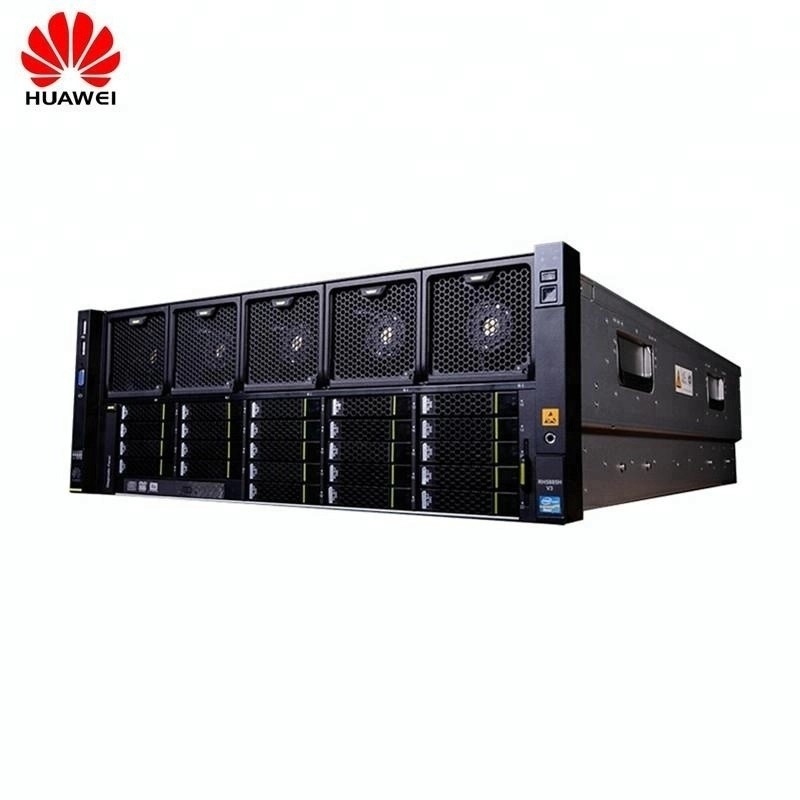

Huawei FusionServer RH5885 V3 Rack Server Specifications |
|
| Form factor | 4U rack server |
| Number of processors | 2 or 4 |
| Processor model | Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
| Number of DIMM slots | 48 DIMMs, up to 3 TB (64 GB DIMMs) |
| Memory | 48 DIMMs |
| Internal Storage | 8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
| RAID |
RAID 0, 1, 10, 5, 50, 6, or 60 (Optional) Configured with a supercapacitor or Battery Backup Unit (BBU) for power-off protection |
| LOM Network Ports | 2 GE or 4 GE ports, or 2 x 10 GE ports |
| PCIe Expansion | Up to 8 PCIe slots (including one for RAID) |
| Fan Modules | 5 hot-swappable fan modules in N+1 redundancy mode |
| Power Supply Units |
2 hot-swappable PSUs in 1+1 redundancy mode 4 hot-swappable PSUs in 2+2 redundancy mode |
| Management |
Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant |
| Dimensions (H x W x D) | 447 mm x 790 mm x 175 mm (17.60 in. x 31.10 in. x 6.89 in.) |
