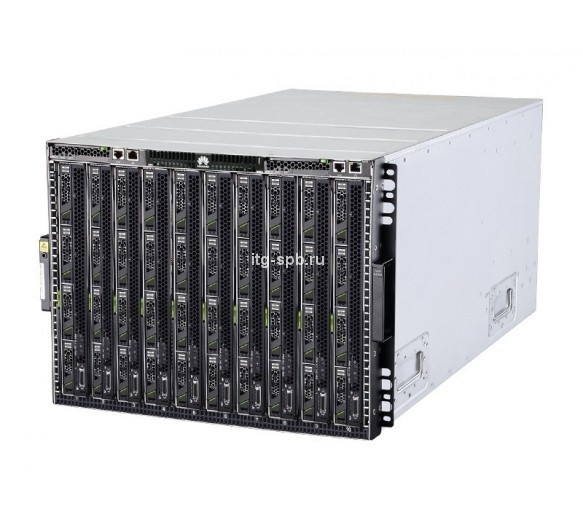

Huawei E6000 Blade Server Chassis Specification |
|
| Form Factor | 8U blade server chassis |
| Server Blades | 10 slots for Huawei BH series server blades |
| Switch Modules | ● NX910 GE pass-through module ● NX120 4G FC switch module ● NX112 10 GE uplink switch module ● NX113 10 GE uplink switch module |
| PSU | Up to 6 hot-swappable PSUs: ● AC: 1,600W ● -48V DC: 1,300W *Redundancy: N+N or N+M *Note: N+N redundancy is not supported on PSUs when the server is fully configured with BH640 V2 server blades. |
| Fan Modules | 9 hot-swappable fan modules in N+1 redundancy mode |
| Management | 2 management modules in 1+1 redundancy mode Supported protocols: IPMI 2.0, SOL, SSL, and SSH Supports CLI, IPMI tools, RMCP+, and Web for management |
| Power Supply | 110V AC to 220V AC, or -48V DC |
| Operating Temperature | 5°C to 35°C |
| Dimensions | Height: 353 mm (13.90 in.) Width: 447 mm (17.60 in.) Depth: 810 mm (31.89 in.) |
