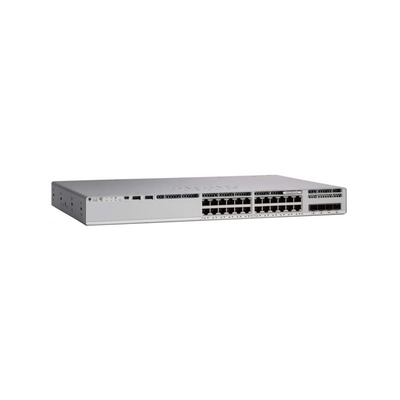

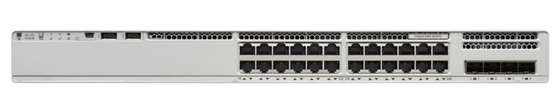

Product Details:
|
| Part Number: | C9200-24T-A | Downlinks Total 10/100/1000 Or PoE+ Copper Ports: | 24 Ports Data |
|---|---|---|---|
| Uplink Configuration: | Modular Uplink Options | Fans: | FRU Redundant |
| Software: | Network Advantage | Stacking Bandwidth: | 160 Gbps |
| DRAM: | 4 GB | Flash: | 4 GB |
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
C9200-24T-A Specification |
|
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports data |
| Uplink configuration | Modular uplink options |
| Default primary AC power supply | PWR-C6-125WAC |
| Fans | FRU redundant |
| Software | Network Advantage |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 4 |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Mean time between failures (hours) | 587,800 |
