Product Details:
|
| Model: | C9400-LC-24XS | Port Speed: | 10 GE Or 1 GE |
|---|---|---|---|
| Port Type: | SFP/SFP+ | Bandwidth: | 80 Gbps |
| Interfaces: | 24 X 10GBase-T SFP+ | Dimensions: | 14.6×14.9×1.6 In. |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Lead Time: | 2-3 Days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS | ||
| High Light: | 10 Gigabit Ethernet Cisco Switch,Cisco Catalyst 9400 Series Switch,C9400-LC-24XS |
||

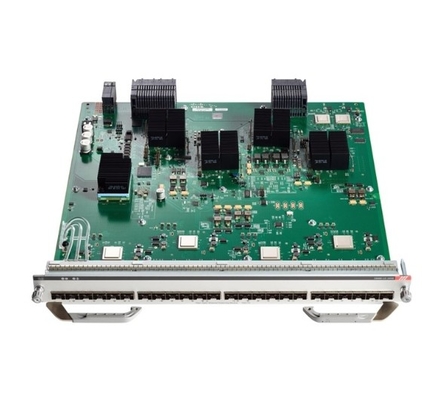

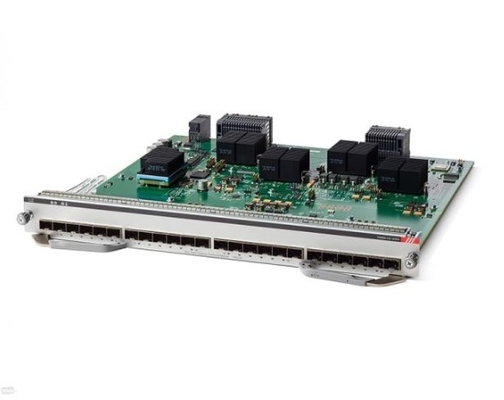

The Cisco Catalyst 9400 Series 24-port 10 Gigabit Ethernet line card can be deployed for high-performance and high-density 10 Gigabit Ethernet aggregations in the campus and in small to medium-sized networks as a core switch. The Cisco Catalyst 9400 Series 24-port 10 Gigabit Ethernet line card supports standard Small Form-Factor Pluggable Plus (SFP+) optics. The ports can be used interchangeably as Gigabit Ethernet and 10 Gigabit Ethernet to support phased migration from Gigabit Ethernet to 10 Gigabit Ethernet.
| Model | C9400-LC-48P | C9400-LC-24XS |
| Number of ports | 48 | 24 |
| Port Speed | 10/100/1000 | 10 GE or 1 GE |
| Port type | RJ-45 POE+ IEEE 802.3at, IEEE 802.3af, Cisco pre-standard | SFP/SFP+ |
| Cisco Catalyst 9400 Series switch min/max ports |
C9404R: 48/96 C9407R: 48/240 C9410R: 48/384 |
C9404R: 24/48 C9407R: 24/120 C9410R: 24/192 |
| Model | Description |
| C9404R | Cisco Catalyst 9400 Series 4 slot chassis, need to be ordered with configured accessories |
| C9407R | Cisco Catalyst 9400 Series 7 slot chassis, need to be ordered with configured accessories |
| C9410R | Cisco Catalyst 9400 Series 10 slot chassis, need to be ordered with configured accessories |
| General | |
| Device Type | Switch - 24 ports |
| Enclosure Type | Plug-in module |
| Ports | 24 x 1 Gigabit / 10 Gigabit Ethernet |
| Performance | Bandwidth: 80 Gbps |
| Jumbo Frame Support | 9198 bytes |
| Features | Jumbo Frames support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support |
| Compliant Standards | IEEE 802.1ae, IEEE 802.1as |
| Expansion / Connectivity | |
| Interfaces | 24 x 10GBase-T SFP+ |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 16.6.2 or later |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 14.9 in |
| Height | 14.6 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
