Product Details:
|
| Model: | S5735-L24P4S-A1 | Typical Power Consumption: | 41.7 W |
|---|---|---|---|
| Chassis Height: | 1 U | Power Supply Mode: | AC Built-in |
| Memory (RAM): | 512MB | Flash Memory: | 512MB |
| Dimensions: | 3.54 In. X 21.65 In. X 14.17 In. | Weight: | 11.68kg |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipping: | DHL, Fedex, UPS |

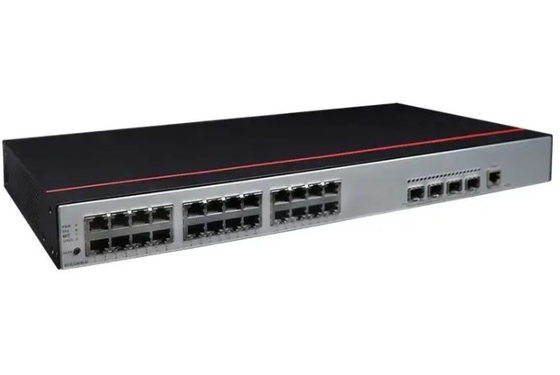

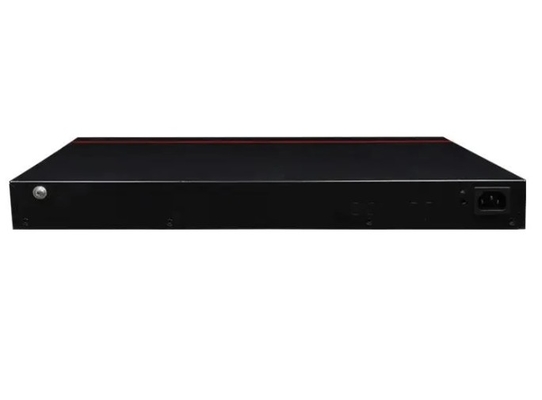

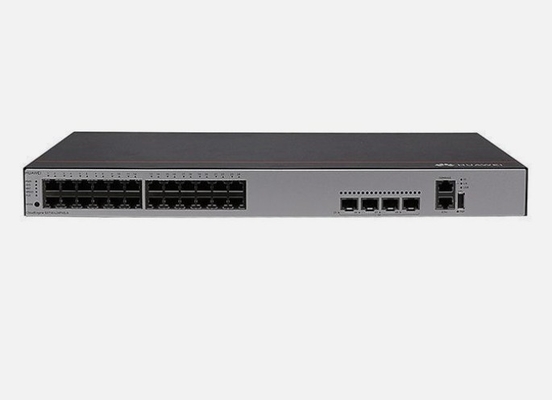

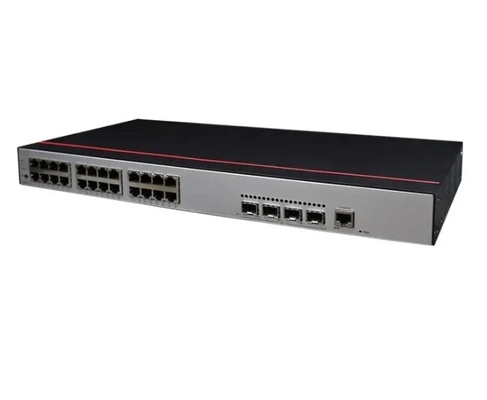

The S5735-L24P4S-A1 from the Huawei CloudEngine S5700 Series Switches adopts 24 10/100 / 1000Base-T Ethernet port, 4 Gigabit SFP, POE +, AC power supply.
Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
| S5735-L24P4S-A1 Specification | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Typical power consumption [W] | 41.7 W |
| Typical heat dissipation [BTU/hour] | 142.29 BTU/hour |
| Maximum power consumption [W] | Not providing the PoE function: 53.2 W |
| 100% PoE loads: 433.2 W (PoE: 380 W) | |
| Maximum heat dissipation [BTU/hour] | Not providing the PoE function: 181.52 |
| MTBF [year] | 55.72 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 50 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 38.2 dB(A) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
