Product Details:
|
| Part Number: | N9K-C9372TX | Ports: | 48 Fixed 1/10GBASE-T And 6 QSFP+ Ports |
|---|---|---|---|
| Form Factor: | 1 RU | Throughput (Tbps): | 1.44 |
| Supported Speeds: | 100 Megabit Ethernet And 1/10 Gigabit Ethernet Speeds | Power Supplies (up To 2): | 650W AC, 930W DC, Or 1200W HVAC/HVDC |
| Typical Power(AC & DC): | 374.5W | Maximum Power(AC & DC): | 694W |

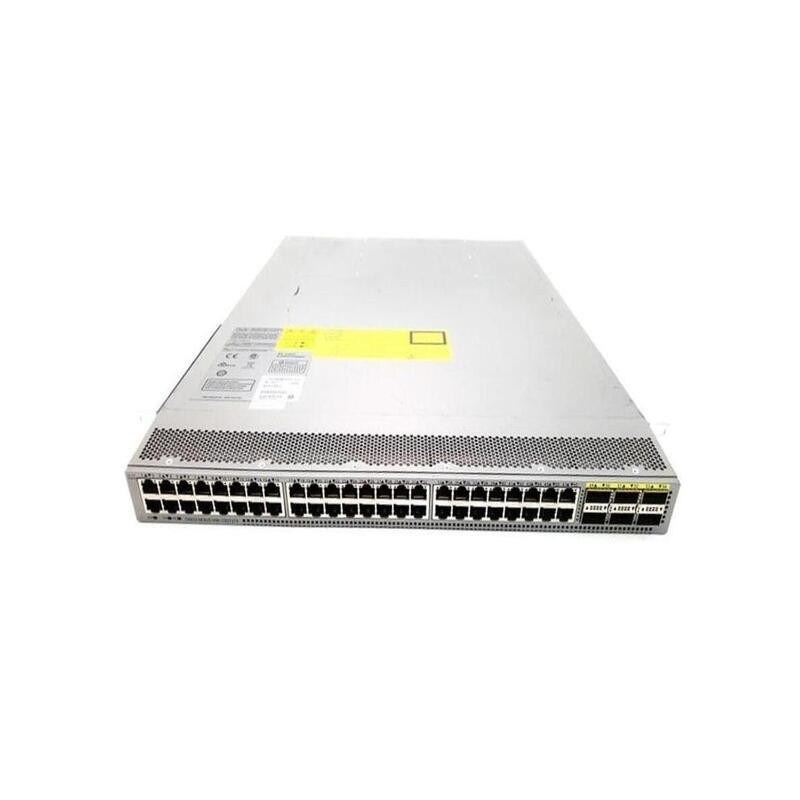

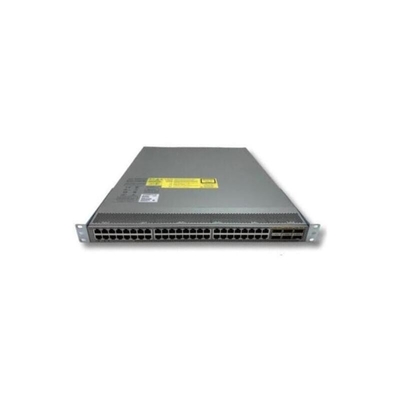

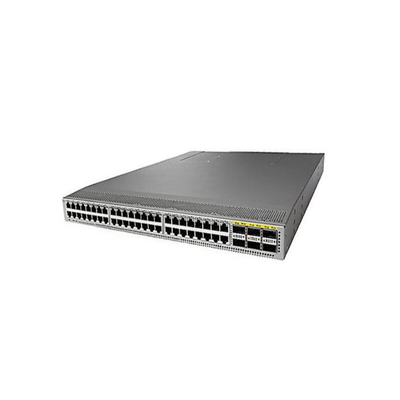

Cisco Nexus 9372TX Switch(N9K-C9372TX) is a 1RU switch that supports 1.44 Tbps of bandwidth and over 1150 mpps across 48 fixed 10-Gbps BASE-T ports and 6 fixed 40-Gbps QSFP+ ports.
| Product Code | N9K-C9372TX |
| Ports | 48 fixed 1/10GBASE-T and 6 QSFP+ ports |
| Form factor | 1 RU |
| Throughput (Tbps) | 1.44 |
| Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink port |
6 fixed QSFP+ ports ·Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.·The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power(AC & DC) | 374.5W |
| Maximum power(AC & DC) | 694W |
| Maximum number of longest prefix match (LPM) routes | 128,000 |
| CPU, SSD, and memory | Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance |
| Buffer (MB) | 37 |
| Operating System | NX-OS, ACI |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1cm) |
| Acoustics | 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed |
| Weight(without power supplies or fans) | 22.6 lb (10.25 kg) |
