Product Details:
|
| Part Number: | N9K-C9396TX | Ports: | 48 Fixed 1/10GBASE-T Ports |
|---|---|---|---|
| Supported Speeds: | 100 Megabit Ethernet And 1/10 Gigabit Ethernet Speeds | 40 Gigabit Ethernet Uplink Ports: | 6 Or 12 QFSP+ Ports Active Through The Uplink Module |
| Power Supplies (up To 2): | 650W AC, 930W DC, Or 1200W HVAC/HVDC | Typical Power (AC): | 427W |
| Maximum Power (AC): | 712W | Input Voltage (AC): | 100 To 240V |

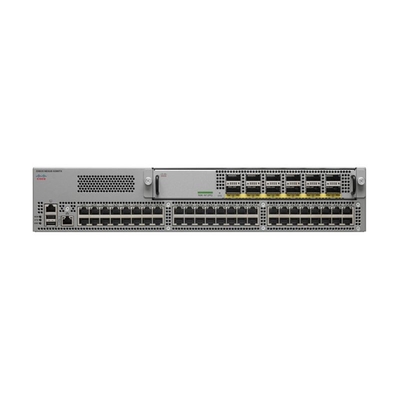

N9K-C9396TX is the Nexus 9300 with 48p 100M/1/10G-T and 8p 40G QSFP. The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
| Product Code | N9K-C9396TX |
| Ports | 48 fixed 1/10GBASE-T ports |
| Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink ports | 6 or 12 QFSP+ ports active through the uplink module |
| Physical (H x W x D) | 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) |
| Weight | 22.45 lb (10.2 kg) (without power supplies, fans, or uplink module) |
