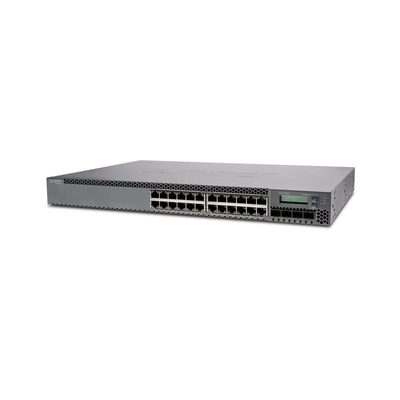

Product Details:
|
| SKU: | EX3300-24T | Backplane Speed: | 40-80 Gbps |
|---|---|---|---|
| Data Rate: | 128 Gbps | Throughput: | 95 Mpps (wire Speed) |
| DRAM: | 1 GB With ECC | Flash: | 1 GB |
| Hardware Specifications | |
| Switching Engine Model | Store and forward |
| DRAM | 1 GB with ECC |
| Flash | 1 GB |
| CPU | 1 GHz |
| GbE port density per system | 28 (24 host ports + four 10 GbE/GbE uplink ports) |
| Virtual Chassis Capabilities |
|
| Backplane Speed | 40-80 Gbps |
| Data Rate | 128 Gbps |
| Throughput | 95 Mpps (wire speed) |
| 10/100/1000BASE-T Port Densities | 28 per platform (24 access ports + four uplink ports) |
| 100BASE-FX / 1000BASE-X (SFP) Port Densities | 4 per switch (fixed ports, SFP/SFP+ required) |
| 10GBASE-X Port Densities | 4 per switch |
| Resiliency | Graceful Route Engine Failover (GRES) in Virtual Chassis configuration; external power supply option (future) |
| Operating System | Junos |
| Traffic Monitoring | N/A |
| QoS Queues / Port | 8 |
| MAC Addresses | 16,000 |
| Jumbo Frames | 9216 Bytes |
| IPv4 Unicast / Multicast Routes | 8,000 / 0 |
| Number of VLANs | 4,096 |
| ARP Entries | 4,000 |
