Product Details:
|
| SKU: | EX3400-48T | Backplane Speed: | 160 Gbps |
|---|---|---|---|
| Data Rate: | 336 Gbps | Throughput: | 250 Mpps (wire Speed) |
| Ports: | 48-port 10/100/1000BASE-T, 4 X 1/10GbE SFP/SFP+, 2 X 40GbE QSFP+ | Dimensions (W X H X D): | 17.4 X 1.7 X 13.8 In (43.7 X 4.4 X 35 Cm) 1 Rack Unit |

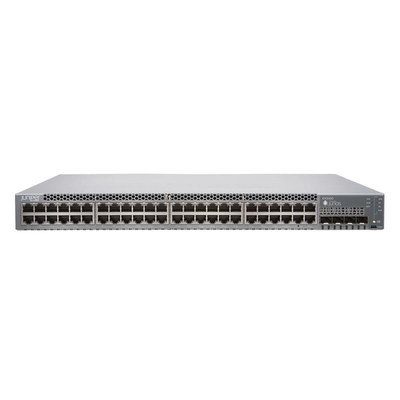

EX3400-48T is a Juniper EX3400 switch with 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
EX3400-48T Specification |
|
| Description | EX3400 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately) |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Backplane speed | 160 Gbps |
| Data rate | 336 Gbps |
| Throughput | 250 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
