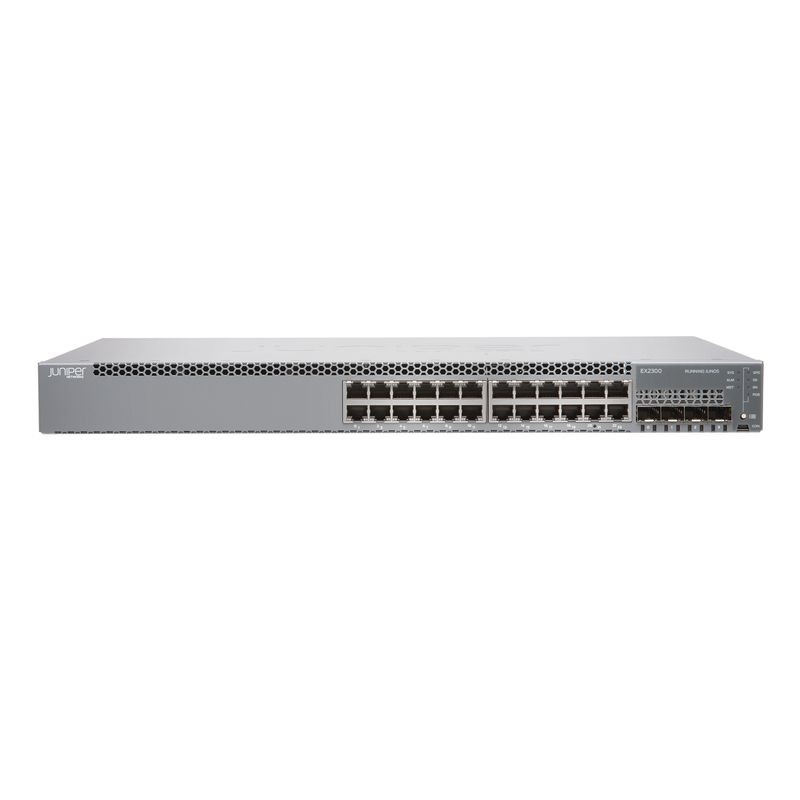

Product Details:
|
| SKU: | EX2300-24T | Backplane Speed: | 80 Gbps |
|---|---|---|---|
| Data Rate: | 128 Gbps | Throughput: | 95 Mpps (wire Speed) |
| Ports: | 24-port 10/100/1000BASE-T, 4 X 1/10GbE SFP/SFP+ (optics Sold Separately) | Dimensions (W X H X D): | 17.4 X 1.75 X 10.2 In (44.19 X 4.45 X 25.9 Cm) 1 Rack Unit |
1. Innovative Design
Innovative, cost-effective switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.
2. Virtual Chassis
With Virtual Chassis technology, up to four interconnected EX2300 switches operate as a single logical device, reducing operational expenses and simplifying management.
3. Eight QoS Queues
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
4. Always-On Reliability
Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver always-on reliability for every application.
5. Centralized Management with Junos Fusion
When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX2300 switches can be managed from a single interface.
6. High Port Densities and Wire-Speed Performance
High 1GbE and 10GbE port densities and wire-speed performance provide flexibility when creating network topologies.
EX2300-24T Specification |
|
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
| Ports | 24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
| Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
| Backplane speed | 80 Gbps |
| Data rate | 128 Gbps |
| Throughput | 95 Mpps (wire speed) |
| 10/100/1000BASE-T port densities | N/A |
| 10GBASE-X port densities | N/A |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Integrated power supply and fans |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 |
| MAC addresses | 16,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast / multicast routes | 4096 / 2048 |
| IPv6 unicast / multicast routes | 2048 / 1024 |
| Number of VLANs | 4093 |
| ARP entries | 1500 |
