Product Details:
|
| Model: | N9K-C9272Q | Ports: | 72 X 40-Gbps QSFP+ Ports |
|---|---|---|---|
| Supported Speeds: | 10, And 40 Gbps | System Memory: | 16 GB |
| Solid-State Disk (SSD) Drive: | 64 GB | Dimension: | 3.5 X 17.4x 24.5 In. |
| Condition: | New Factory Sealed | Warranty: | 1 Year |
| Lead Time: | 2-4days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS |

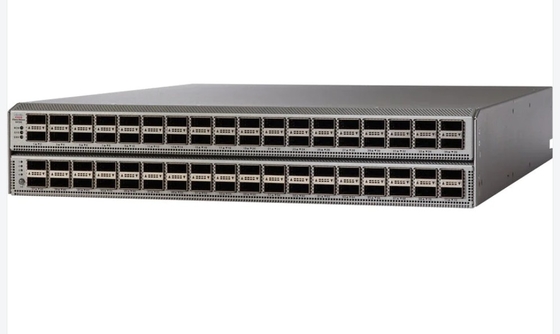

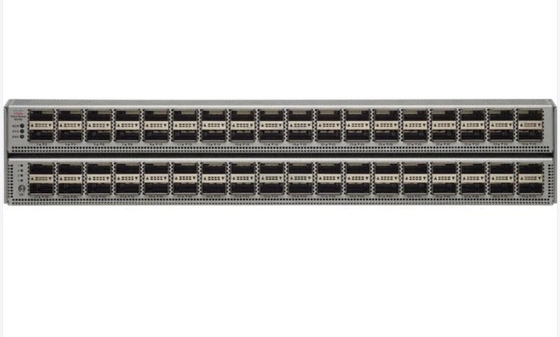

N9K-C9272Q is the Nexus 9200 with 72p 40G QSFP+. Built on the latest Cisco Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.
| Product Code | N9K-C9272Q | N9K-C92160YC-X |
| Ports | 72 x 40-Gbps QSFP+ ports | 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable) |
| Supported speeds | 10, and 40 Gbps |
· 1, 10, and 25 Gbps on SFP+ ports · 10, 25, 40, and 100 Gbps on QSFP ports |
| Port configuration | 72 fixed QSFP+ ports, with breakout of up to 140 x 10-Gbps ports | 48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps |
N9K-C9272Q Specification |
|
| Ports | 72 x 40-Gbps QSFP+ ports |
| Supported speeds | 10, and 40 Gbps |
| Port configuration | 72 fixed QSFP+ ports, with breakout of up to 140 x 10-Gbps ports |
| Telemetry support | – |
| CPU | 4 cores |
| System memory | 16 GB |
| Solid-State Disk (SSD) drive | 64 GB |
| Shared system buffer | 30 MB |
| Management ports | 2 ports: 1 RJ-45 and 1SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (PSU - up to 2) | 930W DC, 1200W AC, or 1200W HVAC/DC |
| Typical power (AC) | 310W |
| Maximum power (AC) | 975W |
| Input voltage (AC) |
100 to 240V PSU redundancy is not supported when used in 110V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | –40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal) |
| Input voltage (HVDC) | 240 to 380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 2 |
| Airflow | Port-side intake and exhaust |
| MTBF (hours) | 397,090 |
| Physical (H x W x D) | 3.5 x 17.4x 24.5 in. (8.9 x 44.2 x 62.3 cm) |
| Acoustics | 61.2 dBA at 50% fan speed, 69.6 dBA at 70% fan speed, and 78.2 dB at 100% fan speed |
| RoHS compliance | Yes |
