Product Details:
|
| Model: | WS-C2960CX-8PC-L | Ethernet Ports: | 8 X 10/100/1000 Gigabit Ethernet |
|---|---|---|---|
| Default Software: | LAN Base | Flash Memory: | 128 MB |
| Memory DRAM: | 512 MB | Dimensions: | 1.75 X 10.6 X 9.4 In. |
| Weight: | 2.27 Kg | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Payment: | T/T, Western Union, Paypal |
| Lead Time: | 2-3 Days | Shipping: | DHL, Fedex, UPS |
| High Light: | 124W PoE Budget Cisco Ethernet Switch,WS-C2960CX-8PC-L,Gigabit Ethernet Ports Switch |
||

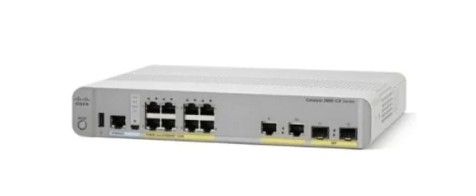

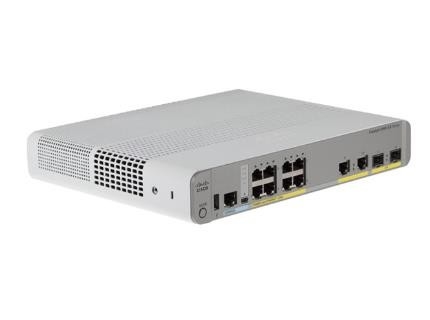

WS-C2960CX-8PC-L equips 8 Gigabit Ethernet POE+ ports with 2 x 1 Gigabit copper and 2 x 1 Gigabit SFP uplinks. The POE powers up to 30W/port and supplies total 124W POE budget which can power IP phones, IP Cam or other POE devices.
| Models | WS-C2960CX-8PC-L | WS-C2960CX-8TC-L |
| Uplinks | 2 x 1G copper or 2 x 1G SFP | 2 x 1G copper or 2 x 1G SFP |
| Ports | 8 x 10/100/1000 Gigabit Ethernet | 8 x 10/100/1000 Gigabit Ethernet |
| Feature set | LAN Base | LAN Base |
| Available POE Power | 124W |
None |
WS-2960CX-8PC-L Specification |
|
| Ethernet Ports | 8 x 10/100/1000 Gigabit Ethernet |
| PoE Output Ports |
8 PoE+ |
| Available PoE Power |
124W |
| Uplinks |
2 x 1G copper plus 2 x 1G SFP |
| Default Software | LAN Base |
| Forwarding Bandwidth | 12 Gbps |
| Switching Bandwidth (full-duplex capacity) | 24 Gbps |
| Flash memory | 128 MB |
| Memory DRAM | 512 MB |
| Max VLANs | 255 |
| VLAN IDs | 4000 |
| Maximum transmission unit (MTU) | Up to 9000 bytes |
| Jumbo frames | 9198 bytes |
| Forwarding rate 64 Byte Packet | 17.9 mpps |
| Power connectors |
- Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit - The internal power supply supports input voltages between 100 and 240VAC |
| Indicators |
Per-port status: Link integrity, disabled, activity, speed, full-duplex System status: System, link status, link duplex, link speed |
| Dimensions (H x W x D) |
1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm) |
| Weight | 5.0 lb (2.27 Kg) |
| Package Weight | 10.25 lb (4.65 Kg) |
| Operating* temperature up to 5000 ft (1524 m) |
-5°C to +45°C (+23°F to +113°F) |
| Operating* temperature up to 10,000 ft (3048 m) |
-5°C to +45°C (+23°F to +113°F) |
| Storage temperature up to 15,000 ft (4572 m) |
-25°C to +70°C (-13°F to +158°F) |
| Operating altitude |
Up to 3048 m (Up to 10,000 ft) |
| Storage altitude |
Up to 4000 m (Up to 15,000 ft) |
| Operating relative humidity | 5% to 95% noncondensing |
| Storage relative humidity | 5% to 95% noncondensing |
| Mean time between failure (MTBF) | 569,530 |
