Product Details:
|
| Module: | N9K-C9396PX | Ports: | 48 Fixed SPF+ Ports |
|---|---|---|---|
| Supported Speeds: | 1/10 Gigabit Ethernet Speeds | Dimensions: | 3.5 X 17.5 X 22.5 In. |
| Weight: | 22.45 Lb | Condition: | Brand New |
| Warranty: | 1 Year | Payment: | TT, Western Union, Paypal |
| Transportation: | DHL, Fedex, UPS | Shipping Time: | 5-7 Days |
| High Light: | 12p 40G QSFP Cisco Ethernet Switch,N9K-C9396PX,Cisco Ethernet Nexus 9300 Switch |
||

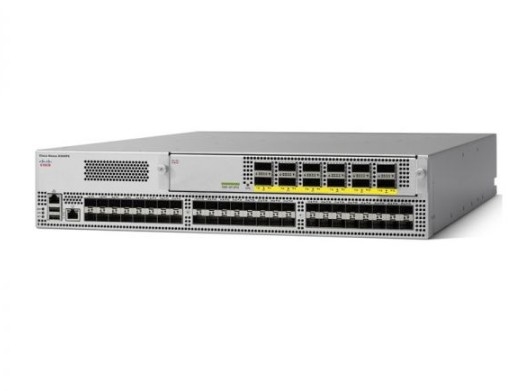

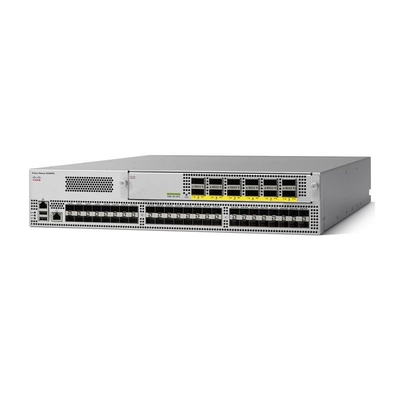

N9K-C9396PX is the Nexus 9300 with 48p 1/10G SFP+ and 12p 40G QSFP. The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
N9K-C9396PX Specification |
|
| Ports | 48 fixed SPF+ ports |
| Supported speeds | 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink ports | 6 or 12 QFSP+ ports active through the uplink module |
| Customers have the choice of either N9K-M6PQ or N9K-M12PQ for 40 Gigabit Ethernet uplink connectivity to aggregation or spine switches. | |
| 100 Gigabit Ethernet uplink ports | Customer can have 100 Gigabit Ethernet uplink connectivity to spine switches or routers through the N9K-M4PC- uplink module, with CPF2 optics as well as the Cisco CPAK®100-Gbps module through converters. |
| The N9K-M4PC-CFP2 offers 5 MB of additional buffer space for each port. | |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC) | 232W |
| Maximum power (AC) | 455W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3 |
| Physical (H x W x D) | 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) |
| Acoustics | 68.3 dBA at 40% fan speed, 78.8 dBA at 70% fan speed, and 84.5 dB at 100% fan speed |
| RoHS compliance | Yes |
| Weight | 22.45 lb (10.2 kg) (without power supplies, fans, or uplink module) |
