Product Details:
|
| Product Model: | S5735-S48T4X | Forwarding Performance: | 132 Mpps |
|---|---|---|---|
| Switching Capacity2: | 176 Gbps/432 Gbps | Fixed Ports: | 48 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports |
| Condition: | Brand New | Warranty: | 1 Year |
| Lead Time: | 2-3 Days | Transportation: | DHL, Fedex, UPS |
| Shipping Time: | 5-7 Days | Payment: | TT, Western Union, Paypal |

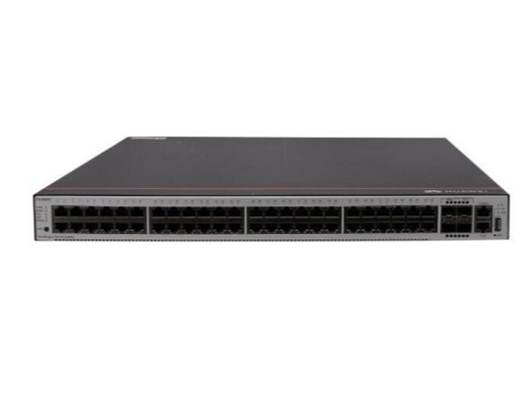

S5735-S48T4X is the Huawei S5735-S switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
Table 1 shows the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Table 2 shows the comparison.
| Product Model | S5735-S24T4X | S5735-S24P4X | S5735-S32ST4X | S5735-S48T4X | S5735-S48P4X | S5735-S48S4X |
| Forwarding Performance | 96 Mpps | 96 Mpps | 108 Mpps | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 128 Gbps/336 Gbps | 128 Gbps/336 Gbps | 144 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps |
| Fixed Ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x GE SFP ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported | Supported | Not supported | Not supported | Supported | Not supported |
S5735-S48T4X Specification |
|
| Forwarding Performance | 132 Mpps |
| Switching Capacity2 | 176 Gbps/432 Gbps |
| Fixed Ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported |
| MAC Features | IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
