Product Details:
|
| Part Number: | N9K-C92160YC-X | System Memory: | 16G |
|---|---|---|---|
| SSD Drive: | 24G | Dimension: | 22.5 X 17.3 X 1.7 In. |
| Weight: | 6.4 Kg | Condition: | Original New |
| Warranty: | 1 Year | Lead Time: | 2-3 Days |
| Shipping: | 5-7 Days | Payment: | TT, Western Union, Paypal |

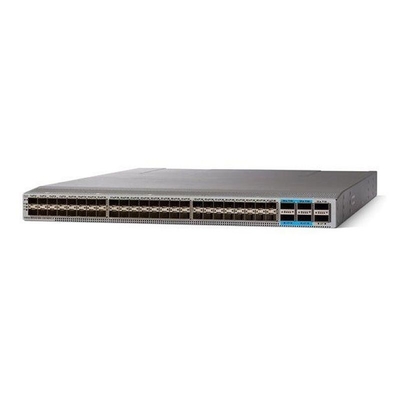

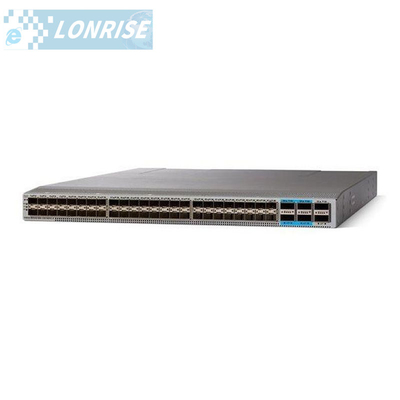

N9K-C92160YC-X is one of the Cisco Nexus 9200 switches. 92160YC-X Switch is optimized for Cisco NX-OS deployments. It provides 48 1/10/25-Gb host ports and up to six hybrid uplink ports that can be configured as 10, 25, 40, or 100-Gb ports. With 3.2 Tbps of switching capacity, the 92160YC-X delivers line-rate Layer 2 and 3 features for demanding enterprise, service provider hosting, and cloud computing environments.
N9K-C92160YC-X Specification |
|
| Ports | 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable) |
| Supported speeds |
1, 10, and 25 Gbps on SFP+ ports 10, 25, 40, and 100 Gbps on QSFP+ ports |
| Port configuration | 48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps |
| CPU | 2 cores |
| System memory | 16G |
| SSD drive | 24G |
| Shared system buffer | 20MB |
| Management ports | 2 ports: 1 RJ-45 and 1SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W AC/HVDC |
| Typical power (AC) |
10-Gbps mode: 150W 25-Gbps mode: 170W |
| Maximum power (AC) | 475W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | –40 to –72V DC (minimum and maximum) –48 to –60V DC (nominal) |
| Input voltage (HVDC) | 240 to 380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| MTBF (hours) | 379,400 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 51.9 dBA at 40% fan speed, 56.2 dBA at 70% fan speed, and 66.0 dB at 100% fan speed |
| RoHS compliance | Yes |
| Number of longest prefix match (LPM) routes |
Default: 6,000 LPM heavy mode: 650,000 |
| Number of IP host entries |
Default: 96,000 LPM heavy mode: 650,000 |
| Number of MAC address entries | 92,000 |
| Number of multicast routes |
Shipping: 8,000 Maximum: 32,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000 Maximum: 32,000 |
| Number of access control list (ACL) entries |
Per slice of the forwarding engine: 4,000 ingress 2,000 egress Maximum: 8,000 ingress 4,000 egress Shipping: 7,164 ingress 3,580 egress |
| Maximum number of VLANs | 3,967 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Shipping: 1,000 Maximum: 16,000 |
| Maximum number of links in a Port Channel | 32 |
| Maximum number of ECMP paths | 64 |
| Maximum number of ECMP groups | 256 |
| Maximum number of ECMP members | 64,000 |
| Maximum number of Port Channels | 512 |
| Number of active SPAN sessions | 4 |
| Number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Multiple Spanning Tree (MST) instances | 64 |
| Maximum Number of VxLAN Tunnel Endpoints (VTEPs) | 256 |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Weight (without power supplies or fans) | 14.12 lb (6.4 kg) |
